synchroWAVe Event Software

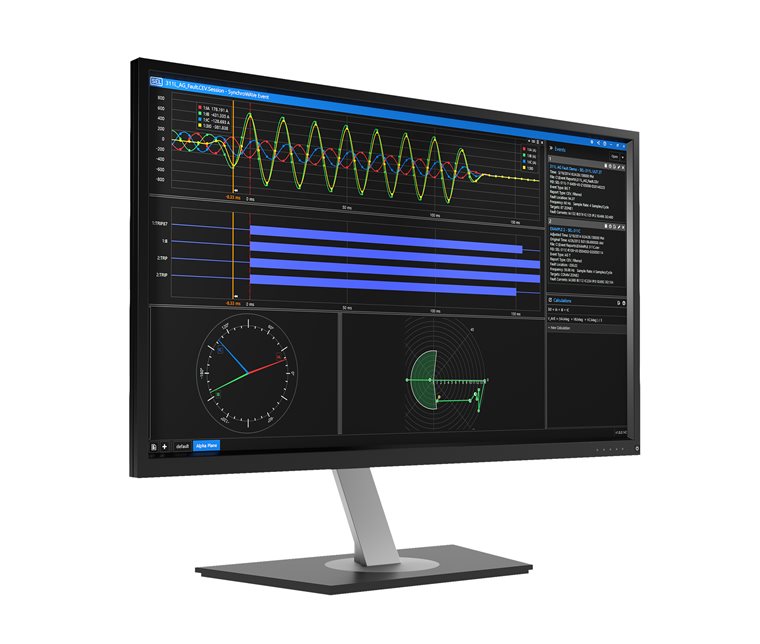

synchroWAVe Event helps engineers diagnose a protective relay’s behavior during a power system fault. It is a powerful yet easy-to-use solution for displaying and analyzing SEL relay event reports and COMTRADE files. To learn more, download your FREE 60-day trial of synchroWAVe Event.

Subscribe to or read The Synchrowave Report.

Feature Comparison

Budgetary Retail

Single-Seat License: $520

Latest Software Version

Request a Follow-Up


Analyze Relay Event Data—Plot relay oscillography, display phasor magnitudes and angles, and monitor digital status. Navigate through events with integrated zoom and pan functions.

Time-Align Event Reports—Easily coordinate multiple event report times for accurate comparison and analysis of signals from multiple relays or past event reports.

Perform Calculations—Create equations to analyze specific trip conditions. Instantly plot calculation results for quick event analysis. The built-in function library creates endless calculation possibilities.

COMTRADE Viewer—View COMTRADE reports from a variety of sources together in synchroWAVe Event for complete COMTRADE file analysis.

Visualize Distance Elements—Analyze protective relay distance element operation with the exact mho circle diagram. The mho circle diagram enables plotting apparent impedance and distance element characteristics for analysis.

Save Analysis Setup Time—Create personal and relay specific analysis templates to provide a customized view into the relay’s operation. Save and share templates for more efficient post-event analysis.

Understand Differential Element Performance—View the current differential ratios plotted directly onto the complex alpha plane. Supporting both two- and multi-terminal lines, you can overlay the differential ratio with the restraint region to quickly identify when the differential element picked up. Experiment with alternative restraint regions to explore the effects of alternate protection settings.

See Traveling Waves

Advanced Fault Location Visualization—The SEL-411L Advanced Line Differential Protection, Automation, and Control System and the SEL-T400L Time-Domain Line Protection relay can record traveling-wave data to provide highly accurate fault locating. synchroWAVe Event generates a Bewley lattice diagram from the traveling-wave data to enable visualization, analysis, and understanding of the traveling waves recorded for an event.

5601-2015 Traveling Waves


How to Use SYNCHROWAVE® Event: Overview

Watch Video New
How to Use SYNCHROWAVE® Event: Overview

Supported Operating Systems

  • Microsoft Windows 7 or 10, 32- or 64-bit
  • Microsoft Windows Server 2008

Additional Features

  • Frequency spectrum analysis
  • Harmonic analysis
  • Export data to COMTRADE and .CSV
  • View relay settings
  • Print screen captures

Event File Support

  • Compressed ASCII (.CEV)
  • Event report (.EVE)
  • Traveling wave

Sales Force Central access is required to view the content in this tab.

Sales Force Central

synchroWAVe Event provides a 60-day free trial of licensed features. After the 60-day trial, you can purchase a license or continue to use the unlicensed features. Visit the synchroWAVe Event comparison page to view licensed versus unlicensed features.

synchroWAVe Event is licensed per computer. Contact your local SEL sales representative for corporate licensing.

Click here for information on the Customer Licensing Portal to manage your software licenses.
