SEL-FLT & SEL-FLR

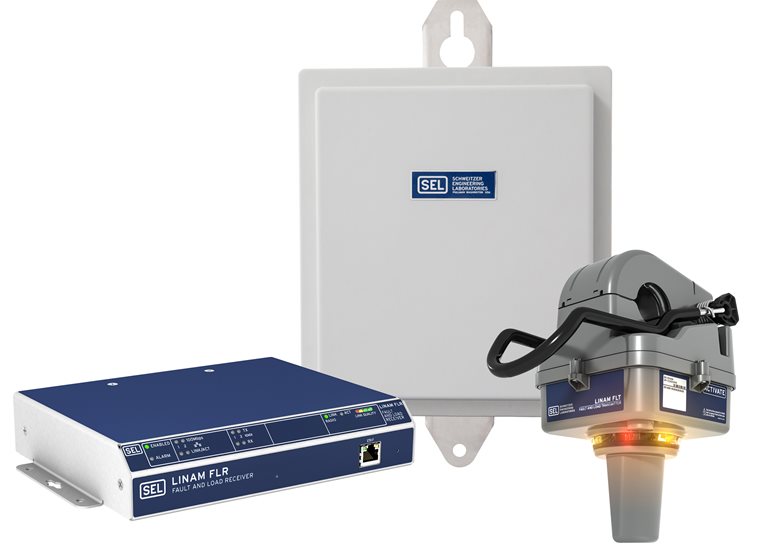

Fault and Load Transmitter and Receiver System

The SEL-FLT and SEL-FLR Fault and Load Transmitter and Receiver System improves the overall reliability of your distribution system through accurate fault indication and load monitoring. The system enables you to locate faults faster and make informed switching decisions. Restoring power quickly is essential to ensuring satisfied customers and better CAIDI reliability metrics. Locating momentary faults allows you to address system issues and improve MAIFI metrics. Highly accurate (1% typical) load data also enables phase balancing and system planning.

The SEL-FLT Fault and Load Transmitter and the SEL-FLR Fault and Load Receiver work in combination using unlicensed 900 MHz wireless communications with a range of 10 miles. Line powering, with as little as 3A continuous current, reduces ongoing maintenance and allows you to use the SEL-FLT throughout your distribution system. SEL-FLR Receivers are easy to integrate into existing systems with DNP3/IP output and comprehensive security.

Coming Soon

Request more information

*Required


Improve Fault Location Throughout the Distribution System—Adding the SEL-FLT and SEL-FLR System provides more detail for momentary and permanent fault location on feeders, taps, and laterals to provide a more granular and extended view of the distribution system. With centralized fault information from the SEL-FLT and SEL-FLR System, utility operations teams can dispatch crews to more precise locations, speeding up restoration. Bright LEDs on the SEL-FLT provide local identification for line crews confirming the fault indication reported through the SCADA system or outage management system (OMS).

Use Load Data to Improve Operations—Highly accurate (1% typical) and timely load data (as fast as 5-minute intervals) from SEL-FLT Transmitters on feeders, taps, and laterals enables better decision-making in emergency switching situations. Load data is also essential for phase balancing, system planning, and identifying potential power theft.

SEL-FLT and SEL-FLR Fault and Load Transmitter and Receiver System

image.img.alt

Improve Reliability Metrics and Planning
With a unique and powerful combination of capabilities, the SEL-FLT and SEL-FLR System provides a cost-effective way to integrate wireless fault indication and load data into centralized SCADA systems, allowing for better CAIDI and MAIFI metrics, proactive planning, and more informed switching decisions.

Reduce Operation and Maintenance Costs
Line-powered SEL-FLT Transmitters remove the need for battery replacement programs, and autoranging eliminates manual configuration of trip thresholds. SEL-FLR Receivers can be tied into existing networks with no extra software to purchase. The wireless link range of 10 miles and the support for 192 SEL-FLT Transmitters per SEL-FLR decrease the required number of collection points and reduce costs.

Simplify Deployment
SEL-FLT Transmitters can be installed with a single hotstick. Using standard DNP3/IP output, SEL-FLR Receivers integrate easily into Ethernet networks. All configuration and troubleshooting for the SEL-FLT and SEL-FLR System is performed through the SEL-FLR easy-to-use web interface.

Trust the Strong Built-In Security
Wireless communications are protected with 128-bit encryption as well as message and device authentication. Users are authorized using role-based access, and unused Ethernet ports can be locked down. If security events occur, the SEL-FLR logs all events locally and can send alerts to syslog destinations.

Develop a Deployment Plan With a Wireless Area Coverage Study
SEL provides a wireless path study for the planned use of an SEL-FLT and SEL-FLR System. Customers provide information for the SEL-FLR and SEL-FLT locations, and the study estimates the viability of the wireless links. SEL offers a free study for up to 5 SEL-FLT Transmitters and offers complete system path studies for a fee through SEL Engineering Services.

Countries
The SEL-FLT and SEL-FLR System is approved for use by the governments of the following countries:

  • Canada
  • Colombia
  • United States

SEL recommends the following accessories to go with the SEL-FLR:

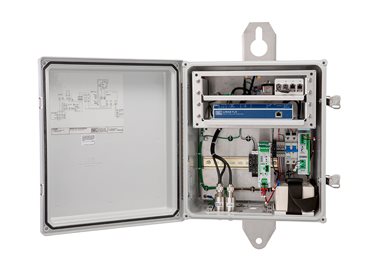

Substation Installation

  • SEL-C968-75 Low-Loss LMR-400 N-to-N Connector, 50 ohm, 75 ft
  • SEL-C964-25 RG-8X TNC-to-N Connector, 50 ohm, 25 ft
  • 200-2004 Radio Surge Protector With N Connectors
  • SEL 235-0233 9.15 dBi Omnidirectional Antenna
  • 240-0105 Mast Mount for Omnidirectional Antennas

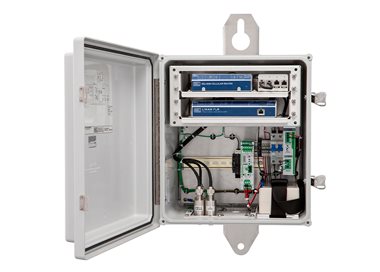

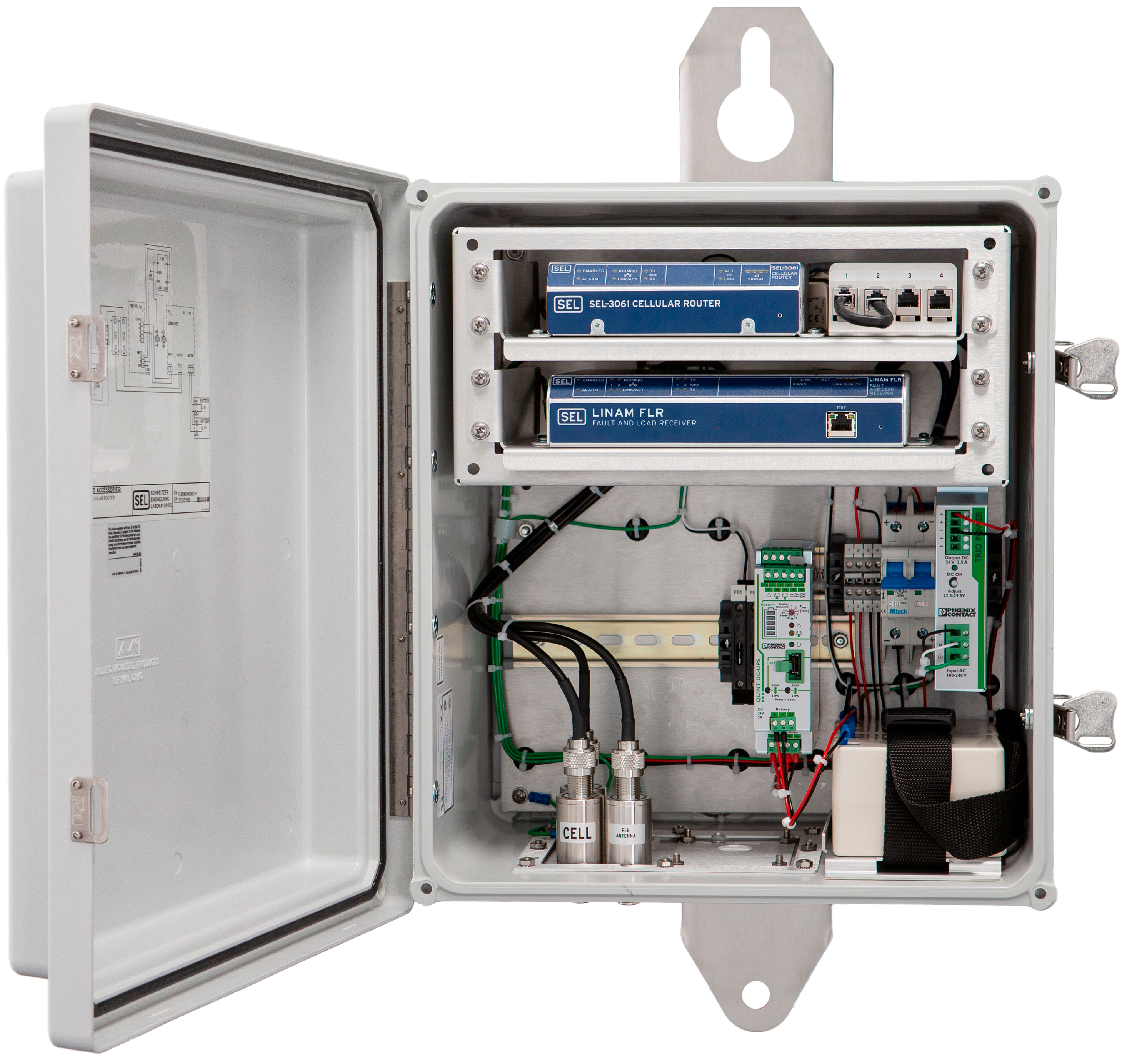

Cabinet Installation

  • SEL-C968-30 Low-Loss LMR-400 N-to-N Connector, 50 ohm, 30 ft
  • SEL-C964-5 RG-8X TNC-to-N Connector, 50 ohm, 5 ft
  • 200-2004 Radio Surge Protector With N Connectors
  • SEL 235-0232 7.15 dBi Omnidirectional Antenna
  • 240-0103 Vertical Omnidirectional Antenna Mount for up to 14" Diameter Pole

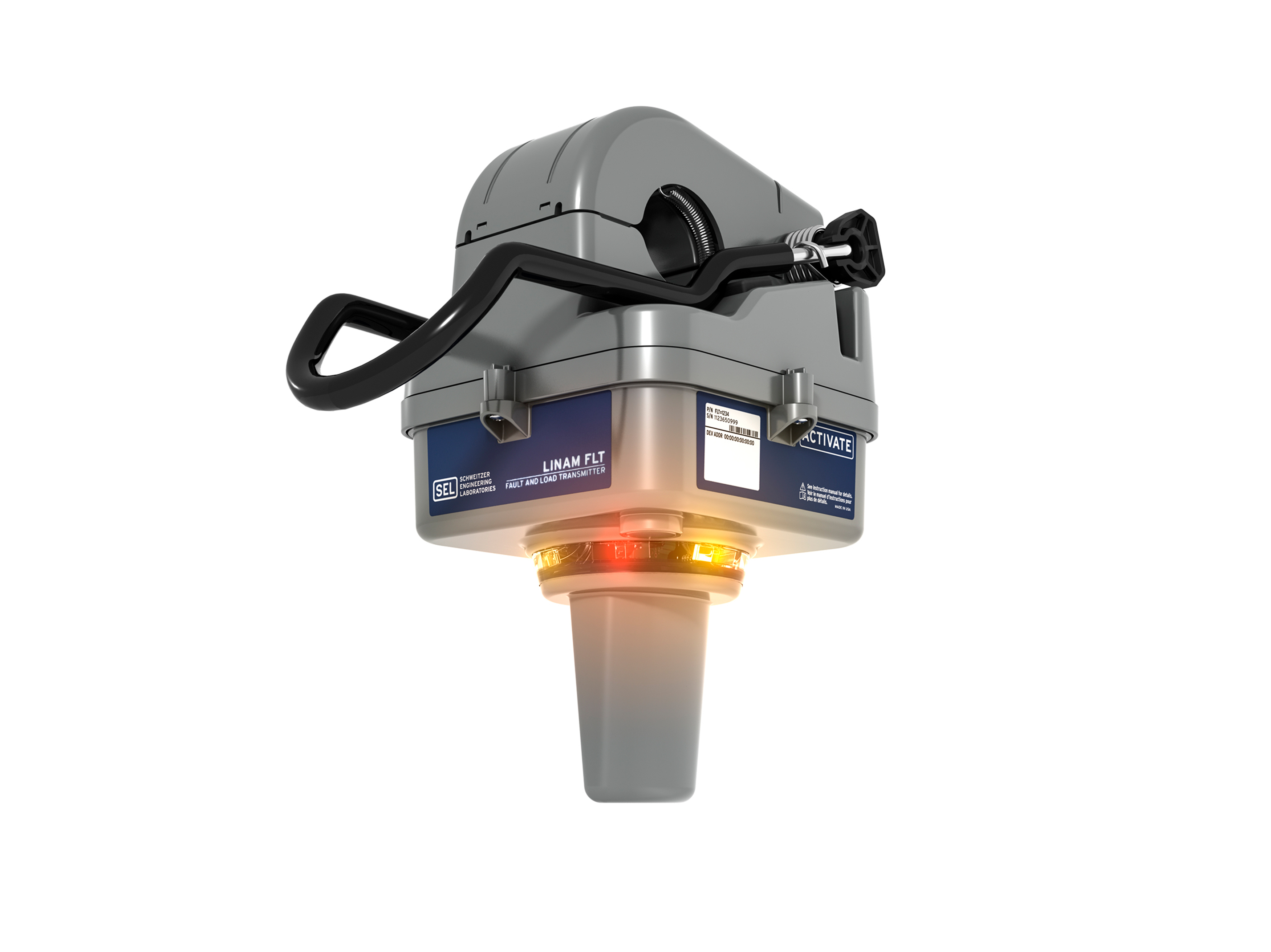

SEL-FLT
Operating Temperature Range–40° to +85°C (–40° to +185°F)
Ingress ProtectionIP-66
Clamp RangeUp to 38.1 mm (1.50 in)
Dimensions152 × 152 × 304 mm (6 × 6 × 12 in)
Weight1.6 kg (3.5 lb)
Current Range3–600 A
Maximum Voltage69 kV (line to line)
Minimum Trip Threshold25 A
Maximum Fault Current25 kA for 10 cycles
Fault Detection Threshold Accuracy4%
Load Measurement Accuracy1% typical
Minimum Continuous Operating Current3 A
Trip Threshold SettingsAutoranging or manual

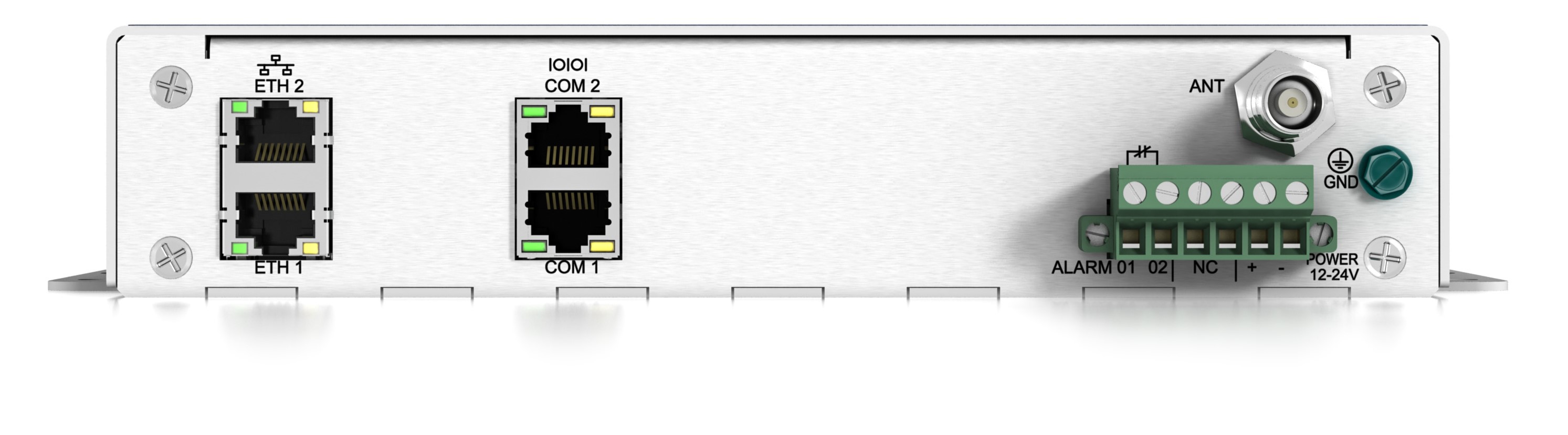

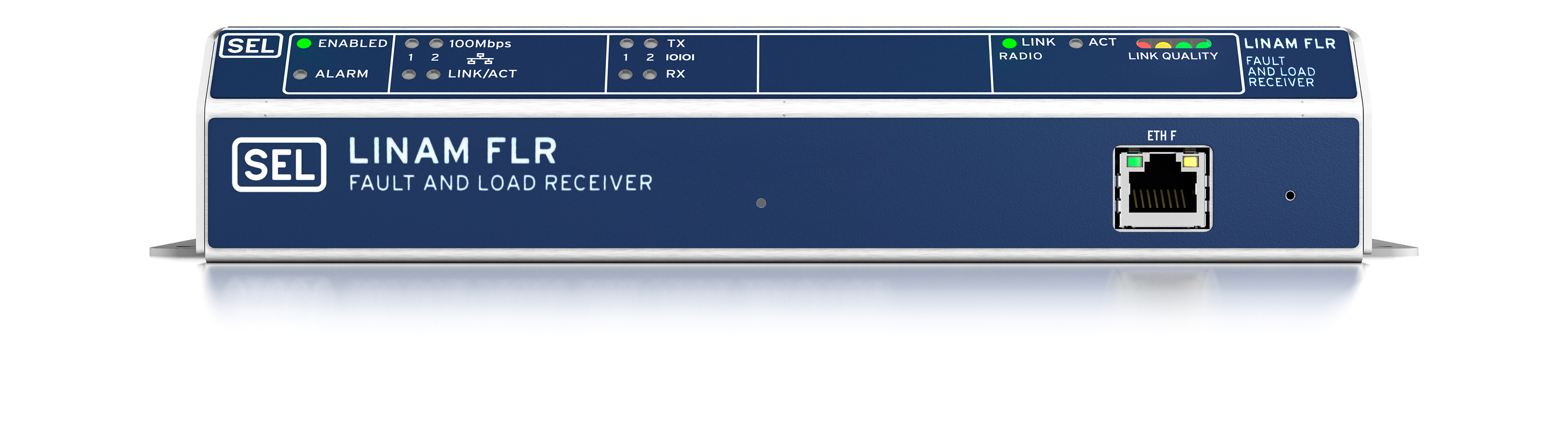

SEL-FLR
Operating Temperature Range–40° to +85°C (–40° to +185°F)
Dimensions216 x 165.1 x 44.5 mm (8.5 in x 6.5 in x 1.75 in)
RF ConnectorTNC
Ports2 Ethernet on rear, 1 Ethernet on front
Input Voltage Range9–30 Vdc
Power Consumption<10 W
Radio
Frequency Band902–928 MHz ISM band
Occupied Bandwidth850 kHz
ModulationDigital 2-FSK
Operating ModePoint to multipoint
Power Output501 mW (23 dBm)
Number of Channels24, nonoverlapping
Sensitivity–100 dBm ±2 dB at 1% PER
Link Data Range250 kbps
Range10 miles
Contact SEL to conduct a free path study.
