SEL-352

Breaker Failure Relay

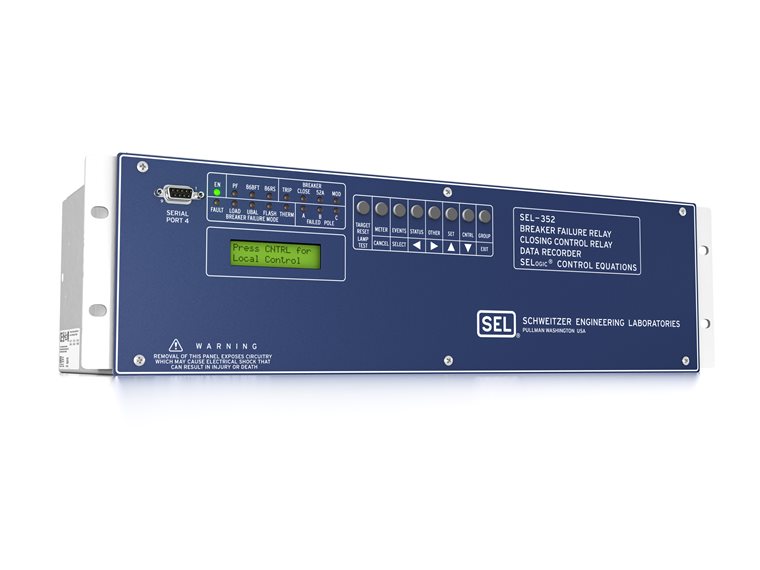

The SEL-352 Breaker Failure Relay provides breaker failure protection, breaker control, and breaker monitoring. Features include a cost-saving data recorder and a sophisticated breaker monitor and controller to reduce maintenance and supervise manual operations. SELogic control equations provide flexibility in applying the SEL-352 Relay for a variety of applications.

Starting At

$4,690

Request a Follow-Up

(0/250)

*Required

Request a Follow-Up


Breaker Failure Protection—Apply one SEL-352 per circuit breaker for single- or three-pole breaker failure detection. Detect failure to trip for fault or load conditions, failure to close, pole disagreement, failure while open (flashover detection), failure to trip or close due to stuck resistor switches, and loss of dielectric pressure. Overcurrent fault detection includes unique subsidence current logic to provide fast reset after the breaker opens.

Data Recording and Event Analysis—Record 10 seconds of oscillographic event reports, store up to 512 points of Sequential Events Recorder (SER) data, and monitor breaker trip and close operations, including accumulated interrupt current, and mechanical and electrical breaker operating times.

Configurable Circuit Breaker Control—Choose from five built-in schemes to cover ring-bus, breaker-and-a-half, or double-bus applications, or modify with SELogic control equations for custom applications. Sophisticated breaker control also includes Motor-Operated Disconnect (MOD) trip and power circuit breaker isolation security logic.

Point-on-Wave Opening and Closing Technology—Extend breaker life and reduce system transients and restrikes across opening and closing breaker contacts by implementing point-on-wave opening and closing technology.

Details

Comprehensive Breaker Failure Protection
The SEL-352 offers circuit breaker failure protection, including failure to trip for fault or load conditions; failure to close, including pole disagreement; failure while open (flashover detection); failure to complete a trip or close due to stuck resistor switches; and loss of dielectric pressure. Five built-in schemes can be modified with SELogic control equations for application flexibility. Trip failure schemes accommodate single and multiple breaker applications, single-pole closing, and tripping applications. The breaker failure detection element includes unique subsidence current detection logic to provide fast reset after the breaker opens, providing decreased coordination delays for improved system stability.

Complete Breaker Control
Circuit breaker control features include MOD trip and power circuit breaker isolation security logic, retripping, point-on-wave and staggered phase closing, synchronism checking, and trapped-charge polarity detection for sophisticated breaker control. Extensive SELogic control equations allow you to create custom automatic reclosing schemes.

Data Recording
Data recording features include up to ten 60-cycle oscillographic event reports (64 samples/cycle), up to 512 SER reports, breaker trip and close monitor details, and a summary of electrical and mechanical operating times. Record accumulated breaker contact wear on per-phase basis. All recorded data are stored in nonvolatile memory.

High Reliability and Rugged Design
The SEL-352 withstands vibration, electrical surges, fast transients, and extreme temperatures, meeting stringent industry standards. For even harsher environments, order conformal coating for the printed circuit boards to provide an additional barrier to airborne contaminants, such as hydrogen sulfide, chlorine, salt, and moisture.

  • Panel-mount or rack-mount hardware package.
  • Chassis available for one or two additional I/O boards.
  • I/O boards with contact sensing inputs and standard control outputs; high-current interrupting outputs; or high-speed, high-current interrupting outputs.
  • Connectorized (plug-in connectors).
  • Breaker Wear Monitoring: Measure breaker contact wear and breaker operating times. Available in the SEL-352-2 and SEL-352-3 Relays.
  • DNP3 Level 2 Slave communications protocol available for the SEL-352-2 and SEL-352--3 models.
  • Station DC Voltage Monitoring: Measure dc levels, detect dc anomalies, and use dc voltage levels to bias point-on-wave breaker control timing. Available in the SEL-352-3 Relay.

Minimum Software Version

Latest Firmware Versions

There are no firmware versions available for this product.

Product Revision Firmware ID Date Available Serial Number
SEL-352-1 R502-V1 SEL-352-1-R502-V1-Z001001-D20160212 3/4/16 1160630001
SEL-352-2 R507-V1 SEL-352-2-R507-V1-Z103103-D20160212 3/4/16 1160630001
SEL-352-3 R602-V1 SEL-352-3-R602-V1-Z001001-D20160212 3/4/16 1160630001

The Firmware IDs for older versions of the firmware can typically be found in Appendix A of the instruction manual.

Minimum Software Version

3xx software tab - no acSELerator Architect

Configuration Software

acSELerator QuickSet SEL-5030 Software

QuickSet is a tool for engineers and technicians to quickly and easily configure, commission, and manage power system devices. QuickSet includes a Graphical Logic Editor and a device template tool to reduce configuration time and streamline deployment.

Learn more and download on the QuickSet software page.


Automated Data Collection

SEL Data Management and Automation (DMA) Application Suite

Available on the Blueframe platform, DMA applications automatically collect, store, and manage device-specific information like oscillography, Sequence of Events (SOE) data, device settings, and property information. They also provide automated password rotation and streamlined device audits.
