SEL-5032

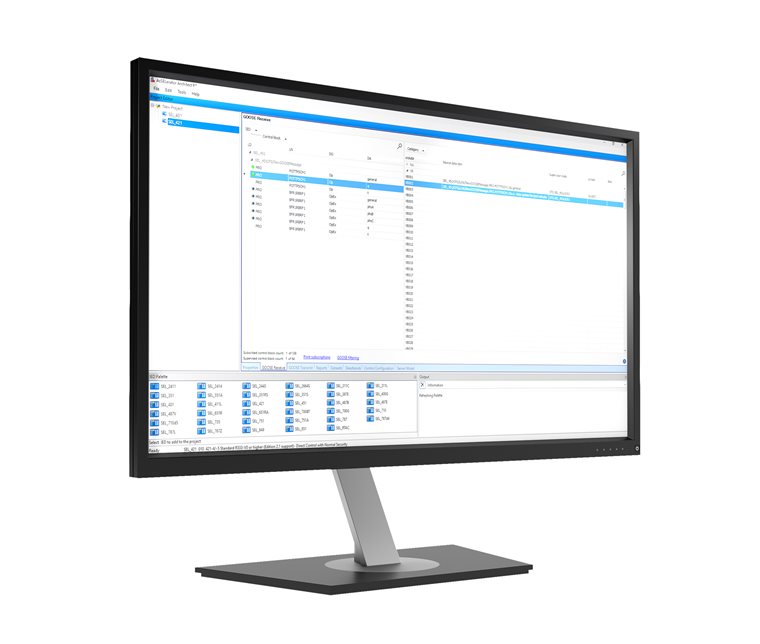

acSELerator Architect Software

Architect configures and documents IEC 61850 systems that include GOOSE, Sampled Values, or Manufacturing Message Specification (MMS) for process bus and SCADA applications.

Budgetary Retail

Included With Supported Products

Supported Products

Latest Software Version

Request a Follow-Up

(0/250)

*Required

Request a Follow-Up


Simple Device Integration—Design and configure SEL devices in IEC 61850 installations using acSELerator QuickSet SEL-5030 Software and Architect together. Architect provides a means to configure and document the IEC 61850 communications settings between SEL devices and devices from multiple manufacturers.

  • Import and export Edition 1 and Edition 2 Substation Configuration Language (SCL) files to simplify system implementation.
  • Detect and report errors by automatically comparing SCL files with the IEC 61850 requirements.
  • SCL files include:
    • SCD—Substation Configuration Description.
    • ICD—IED Capability Description.
    • CID—Configured IED Description.
  • Easily apply the software with these tools:
    • Drag-and-drop functionality.
    • IED palette manager.
    • Tab orientation.
    • Diagnostic windows.
    • Settings wizard.
  • Create and edit custom buffered and unbuffered MMS reports.
    • Configure the publications and subscriptions for IEC 61850-9-2LE Sampled Values.
    • Create and organize custom logical devices.

Server Model Editor—The SEL Real-Time Automation Controller (RTAC) includes MMS server capability that expands the RTAC’s very flexible data concentration capabilities. In systems where the RTAC needs to transmit SCADA data from various client protocol connections (such as SEL, Modbus, or DNP3) in MMS messages, Architect includes the Server Model Editor for configuring MMS server instances in RTACs.

The Server Model Editor provides a graphical representation of the RTAC server model, which enables quick visualization and convenient editing tools for creating and maintaining MMS server applications.

Details

Videos

acSELerator Architect—Part 1: Creating a Project

acSELerator Architect—Part 2: Creating IEC 61850 GOOSE Publications

acSELerator Architect—Part 3: Creating IEC 61850 GOOSE Subscriptions

acSELerator Architect—Part 4: Creating Data Sets

The Firmware IDs for older versions of the firmware can typically be found in Appendix A of the instruction manual.


5032 - Software Tab

Supporting Software

SEL Compass

Compass provides simple and convenient tools for managing SEL digital content. Users can keep software applications and relay configuration drivers up to date without manually browsing product webpages, as well as download new product updates and literature.

Learn more and download on the Compass software page.
