SEL-MR
Manual Reset Fault Indicator

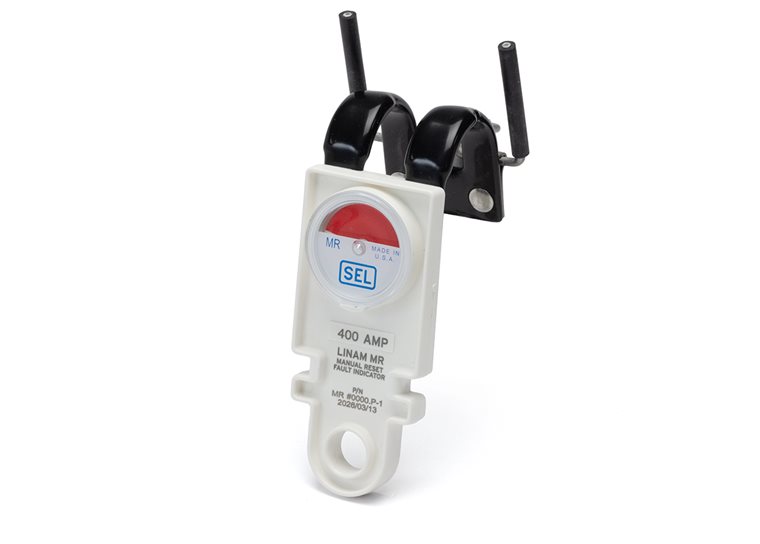

The SEL-MR is a portable manual reset fault indicator and troubleshooting tool for overhead and underground applications up to 38 kV. It is made of a purely magnetic circuit that trips on the magnetic fields generated by the fault current. The SEL-MR is fault-powered and does not require a battery or system load current or voltage to operate.
The SEL-MR is designed to be a portable fault detection tool for line crews to use after an outage occurs to pinpoint fault location when manually reenergizing the circuit.
At the nominal factory-set trip rating, the SEL-MR has a response time of 12 ms. The display has a reflective, highly visible red target (tripped) and white target (reset) to indicate the fault status. The SEL-MR is secured to the line using over-center toggle clamps and can be applied or removed with a hot stick. The hermetically sealed, ultrasonically welded housing and stainless steel, vinyl-coated clamping mechanisms make it suitable for use in submersed and corrosive environments.
A button reset option is available to simplify reset without removing the SEL-MR in underground applications.
Starting At
$38 USD
Popular Model
Applications
Safe and efficient reclosing—After a fault occurs, you can use the SEL-MR to determine the location and confirm the fault clearance before manually reclosing. This avoids costly repetitive refusing and resectionalizing.
Versatile application—The SEL-MR works with overhead covered or bare conductors and underground cables in distribution systems up to 38 kV.
Convenient—The SEL-MR is available in a convenient kit to keep on a truck. The kit includes three SEL-MRs and a Manual Reset Tool in a sturdy, lightweight carrying case.
Apply SEL-MRs after an outage occurs to determine the fault location when manually reenergizing the circuit.
| SEL-MR | SEL-MR With Reset Button | |
| Nominal Trip Ratings | 100 A to 800 A | 200 to 800 A |
| Trip Tolerance | ±10% | |
| Typical Trip Response Time | 12 ms | |
| Overhead System Voltage Range | Up to 38 kV (line-to-line) | Not applicable to overhead conductors |
| Underground System Voltage Range | Equal to voltage class of shielded underground cable | |
| Maximum Fault Current | 25 kA for 10 cycles | |
| Outer Diameter Clamping Range | 6.35 mm to 35.56 mm (0.25" to 1.4") | |
| Temperature Range | –40° to +85°C (–40° to +185°F) | |
| Approximate Weight | 140 g (0.31 lbs) | 170 g (0.37 lbs) |
