SEL-651R Field-Installed Accessories

DescriptionKit Number for Dual-Door EnclosuresKit Number for Single-Door EnclosuresPhoto

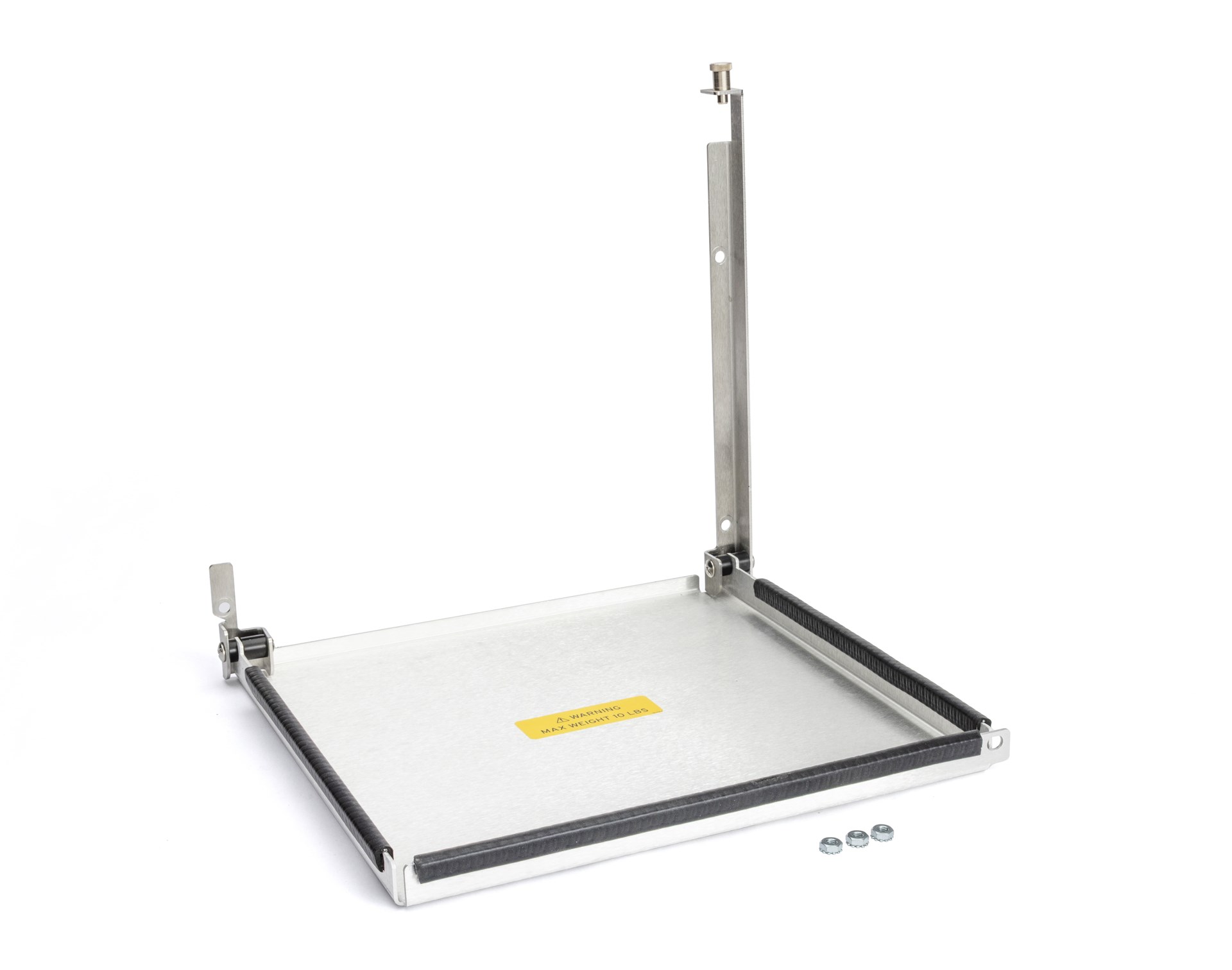

Accessory Shelf92505509250567
Accessory Shelf
Accessory Shelf

Dual-Door Enclosures

Single-Door Enclosures

Voltage Input Fuse Block (Secondary Voltages)92505519250568
Voltage Input Fuse Block
Voltage Input Fuse Block

Dual-Door Enclosures

Single-Door Enclosures

Universal Fuse Block (Incoming Power)92505529250569
Universal Fuse Block
Universal Fuse Block

Dual-Door Enclosures

Single-Door Enclosures

AC Transfer Switch92505539250570
AC Transfer Switch
100 W Heater92505859250831 (651R-2)

9250586
(651R-0,-1)
100W Cabinet Heater
SEL-2401 Satellite-Synchronized Clock Accessory Kit92505939250595
2401_wAntenna_WT
SEL-2725 Ethernet SwitchPlease see SEL-2725 Online MOT and select the appropriate installation accessory, or contact SEL for ordering information.
SEL-2725 Ethernet Switch
SEL-3031 Serial Radio TransceiverPlease see SEL-3031 Online MOT and select the appropriate installation accessory, or contact SEL for ordering information.
SEL-3031 Serial Radio Transceiver
SEL-3060 Ethernet RadioPlease see SEL-3060 Online MOT and select the appropriate installation accessory, or contact SEL for ordering information.
SEL-3060A Ethernet Radio
SEL-2925 BLUETOOTH Serial AdapterPlease see SEL-2925 Online MOT and select the appropriate installation accessory, or contact SEL for ordering information.
SEL-2925 BLUETOOTH Serial Adapter
SEL-3505 Automation ControllerPlease see SEL-3505 Online MOT and select the appropriate installation accessory, or contact SEL for ordering information.
SEL-3505 Automation Controller
SEL-3622 Security GatewayPlease see SEL-3622 Online MOT and select the appropriate installation accessory, or contact SEL for ordering information.
SEL-3622 Security Gateway
2-Pin Socket for Low-Voltage Close92505549250571
2-Pin Socket for Low Voltage Close
8-Pin Socket for Voltage Inputs (MS5015, Size 22)92505559250572
8-Pin Socket for Voltage Inputs (MS5015 Size 22)
4-Pin Socket for Voltage Inputs (MS5015, Size 22)92506929250691
4-Pin Socket for Voltage Inputs (MS5015, Size 22)
3-Pin Socket for Input Power (MS26482, Size 12)92505569250580
3-Pin Socket for Input Power (MS26482 Size 12)
8-Pin Socket for Voltage Inputs (MS26482, Size 12)92505579250581
8-Pin Socket for Voltage Inputs (MS26482, Size 12)
16 Ah Replacement Battery915900200
16 Ah Replacement Battery
40 Ah Replacement Battery915900199
40 Ah Replacement Battery
Security Sleeve (2" Diameter)9250011
security_sleeve
Security Strap for 42-Pin Multi-Recloser Interface and 32-Pin Tavrida OSM Interface Control Cables9250827
Security Strap for 42-Pin Multi-Recloser Interface and 32-Pin Tavrida OSM Interface Control Cables
Security Strap for 24-Pin ABB Interface Control Cables9250828
Security Strap for 24-Pin ABB Interface Control Cables
Security Strap for 40-Pin Siemens SDR Interface Control Cables9250829
Security Strap for 40-Pin Siemens SDR Interface Control Cables
Control Cable, 42-Pin Female (SEL-651R) to 32-Pin Female (G&W J-Box With 32-Pin Connector and Second-Generation Elastimold MVR)C550
Control Cable, 42-Pin Female (SEL-651R) to 32-Pin Male (First-Generation Elastimold MVR)
Control Cable, 42-Pin Female (SEL-651R) to 32-Pin Male (First-Generation Elastimold MVR)C551
Control Cable, 42-Pin Female (SEL-651R) to 32-Pin Female (G&W J-Box With 32-Pin Connector and Second-Generation Elastimold MVR)
Control Cable, 42-Pin Female (SEL-651R) to 32-Pin Male (Plugs Into Existing 32-Pin Cable)C552
Control Cable, 42-Pin Female (SEL-651R) to 32-Pin Male (Plugs Into Existing 32-Pin Cable)
32-Pin Control Cable, Female to FemaleC553
32-Pin Control Cable, Female to Female
32-Pin Control Cable, Female to MaleC524
32-Pin Control Cable, Female to Male
14-Pin Control CableC510
14-Pin Control Cable
14-Pin Control Cable (Overmolded)C520
14-Pin Control Cable (Overmolded)
Control Cable, 14-Pin Female (SEL-651R) to Terminal BlockC513
14-Pin Control Cable (Overmolded)
Control Cable, 14-Pin Male (Recloser) to Terminal BlockC540Photo Not Available
2-Pin Low-Voltage Close CableC515
2-Pin Low-Voltage Close Cable
2-Pin Female to Unterminated Incoming Power Cable (MS5015, Size 22)C516
2-Pin Female to Unterminated Incoming Power Cable (MS5015, Size 22)
8-Pin Voltage Input Cable (MS5015, Size 22)C517
8-Pin Voltage Input Cable (MS5015, Size 22)
8-Pin Female to Unterminated, Voltage Input Cable (MS5015, Size 22)C522
8-Pin Female to Unterminated, Voltage Input Cable (MS5015, Size 22)
3-Pin Female to Unterminated Incoming Power Cable (MS5015, Size 22)C519
3-Pin Female to Unterminated Incoming Power Cable (MS5015, Size 22)
3-Pin Female to Unterminated Incoming Power Cable (MS26482, Size 12)C533
3-Pin Female to Unterminated Incoming Power Cable (MS26482, Size 12)
Cable Assembly, Quick Disconnect to Battery TerminalC5469
Cable Assembly Quick Disconnect to Battery Terminal
