SEL Grid Configurator
SEL Grid Configurator is a freely distributed software tool for engineers and technicians to quickly create, manage, and deploy settings for SEL power system devices. It features a modern interface designed for ease of use, as well as powerful protection visualization and comprehensive reporting to simplify device deployment.
What’s New
New features and enhancements to SEL software are released on a regular basis. For the most recent updates, see the Latest Versions section and read the detailed release notes.
Key Benefits

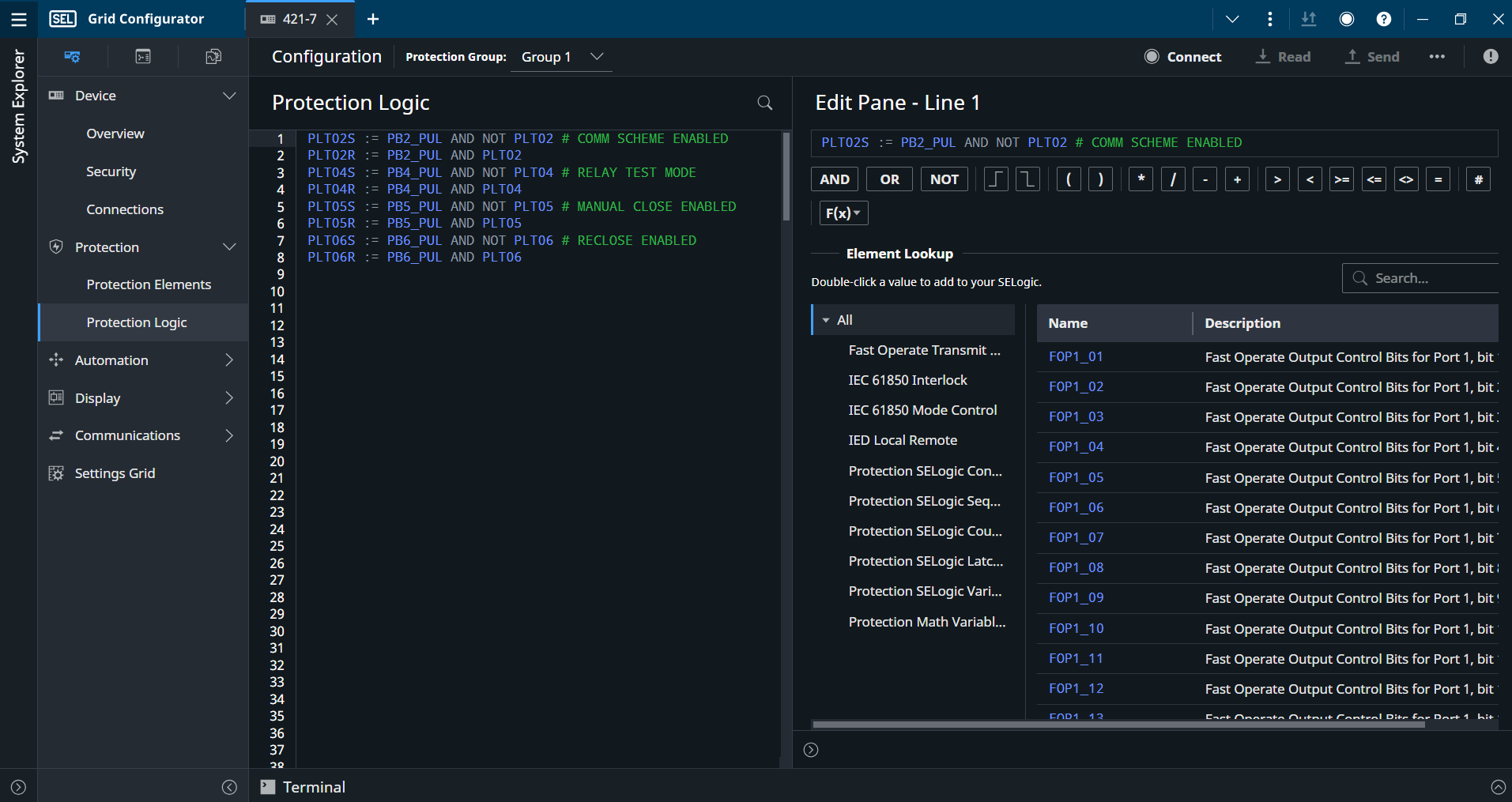

Quickly and Confidently Configure Devices
Easily review and edit primary protection functions.
Compare Device Settings
Use powerful comparison tools to gain a comprehensive view of settings across all devices.
Effectively Test and Commission Devices
Advanced online HMI displays provide the essential, real-time data needed to test and commission devices.
Take a Closer Look

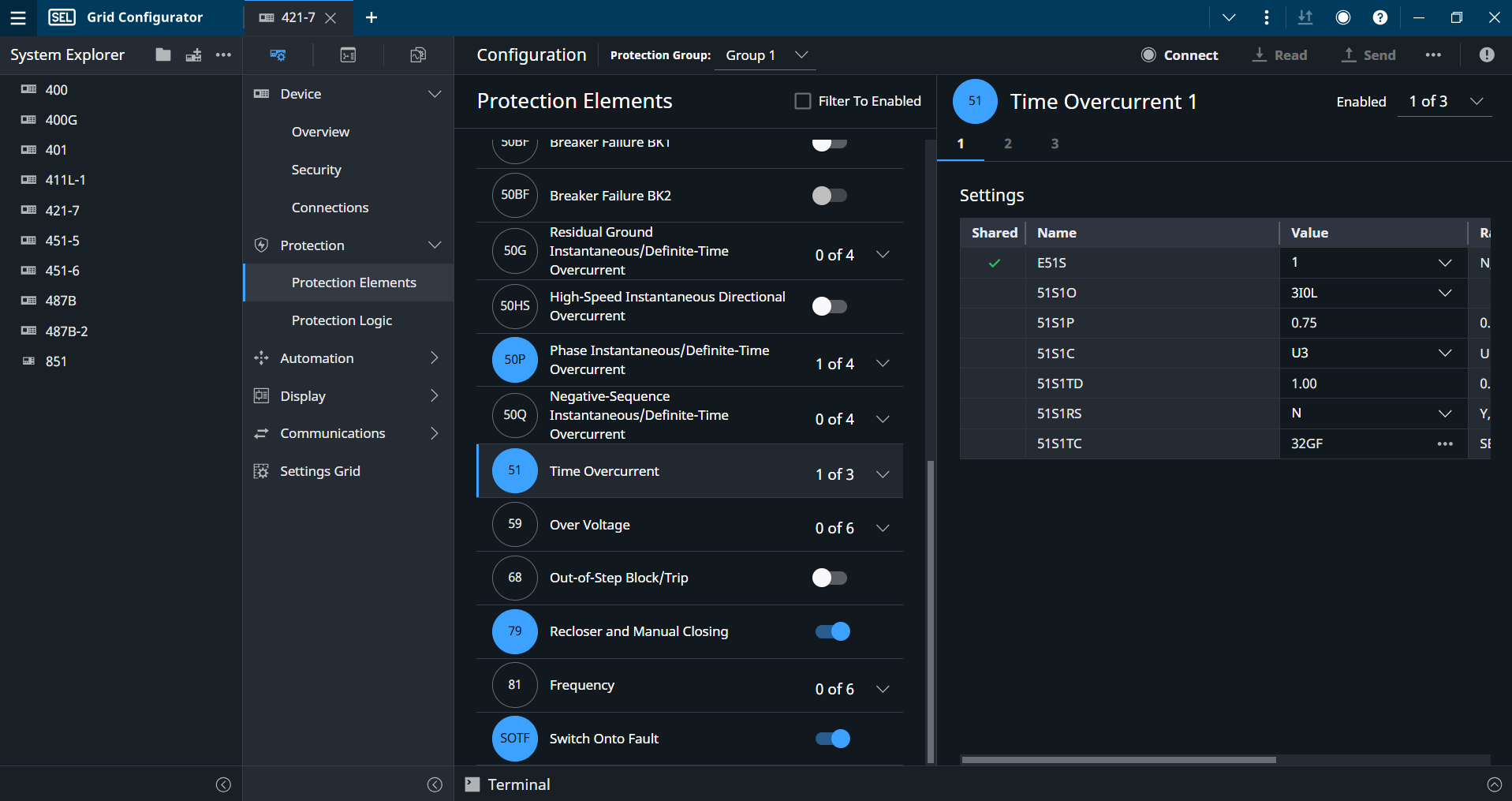

Easy Device Configuration
A user-configurable device hierarchy allows you to quickly identify your power system devices, such as relays, meters, and distribution controllers. Use the spreadsheet-style editor to easily find and edit one or many settings. Manage settings across multiple devices using powerful compare and merge tools, all within a single screen.
Quick Settings Deployment
Connect to multiple networked devices at once to deploy settings without moving cables from device to device. Review a final report to detect any download issues.
Power Protection Visualization

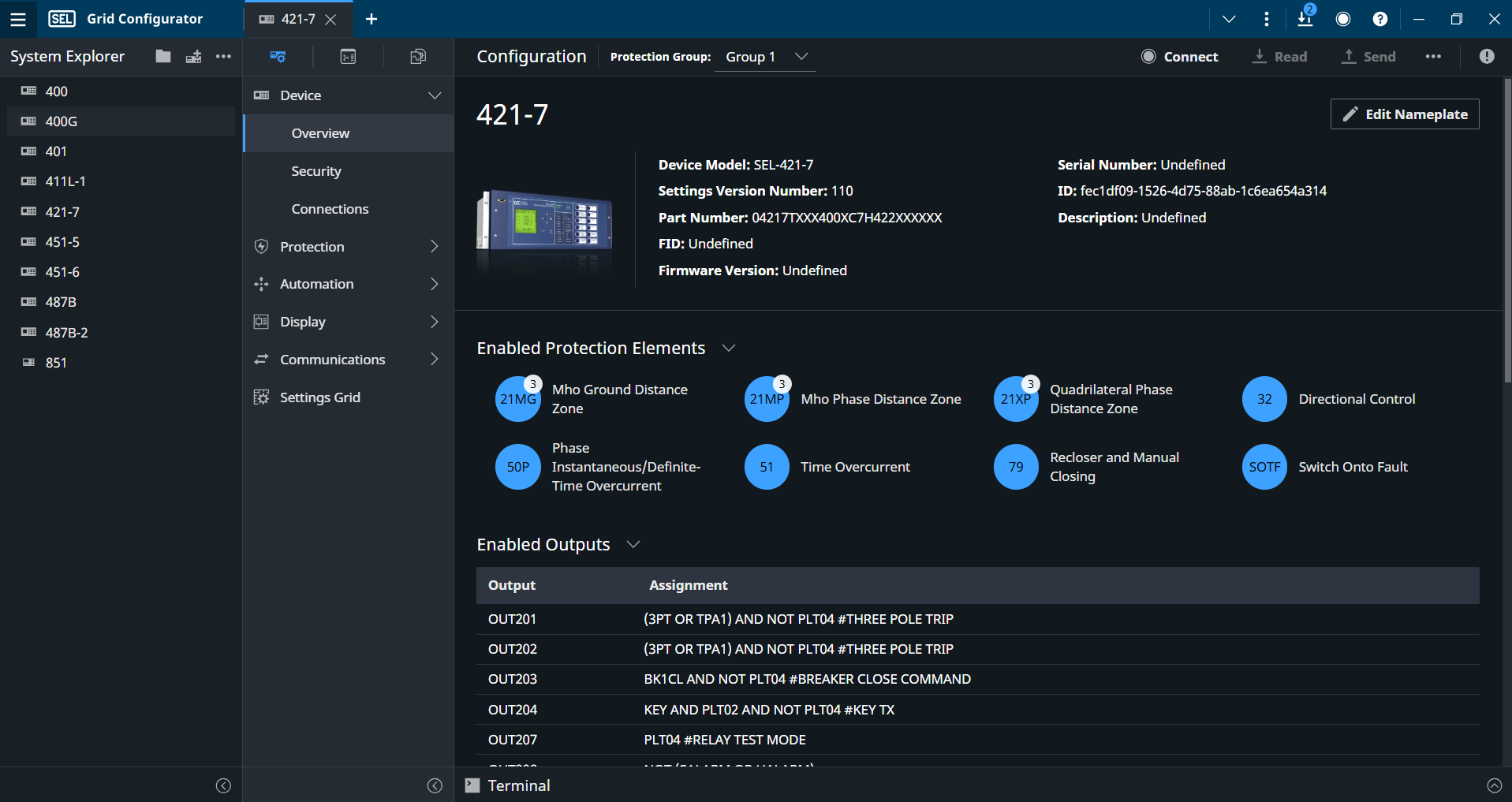

The Device Overview feature provides an immediate high-level summary of which device functionalities are enabled. It offers rich, graphical views of device protection functions.
Simple Migration
Avoid data reentry, decrease settings errors during setup, and save time by importing settings from external calculation tools. Duplicate saved device settings when configuring multiple relays or entire substations with similar designs.
Dynamic Dashboards

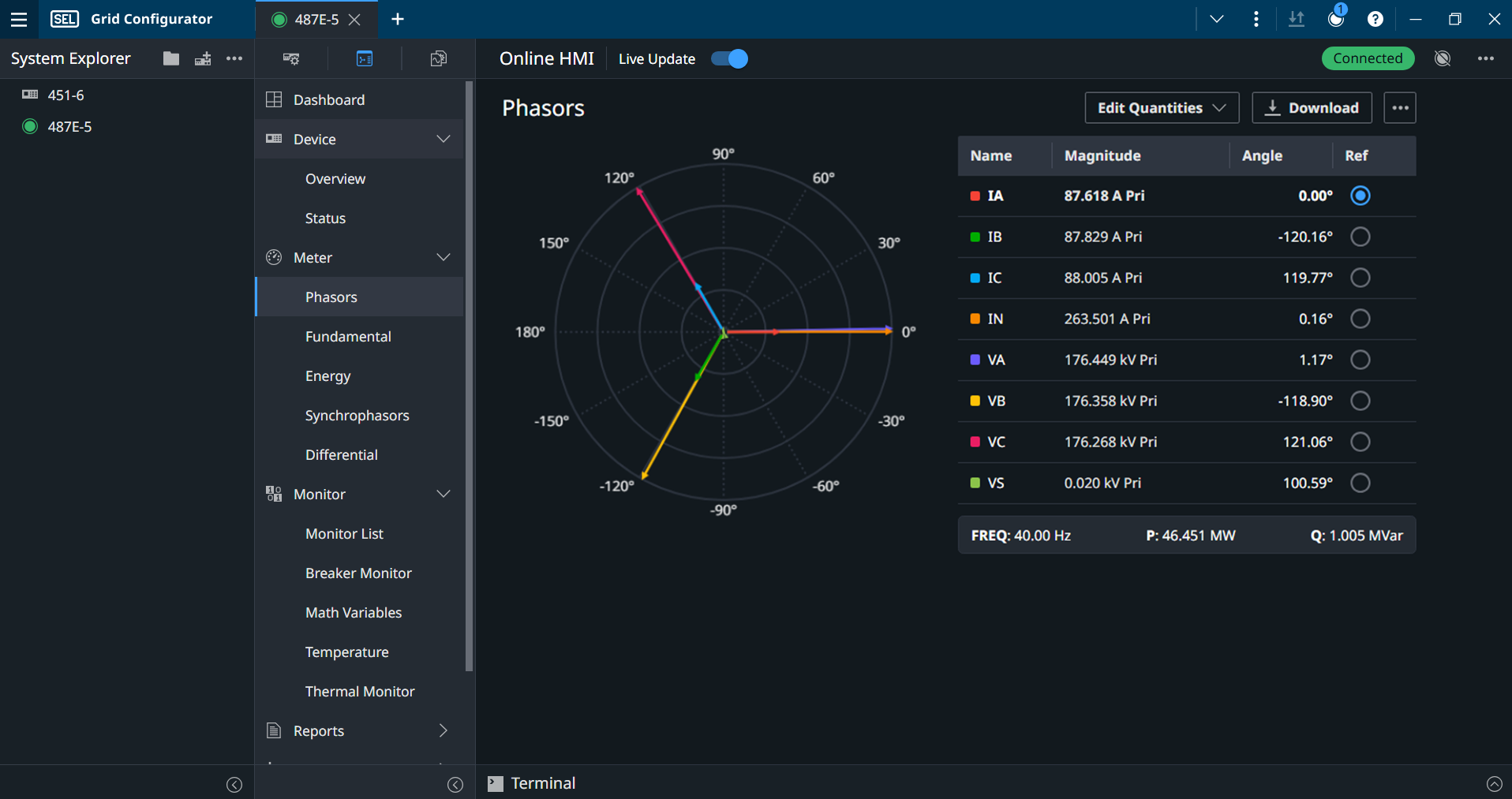

Use the intuitive online HMI to add and customize dashboards that streamline device testing, support commissioning, and provide views of real-time system information.
