LINAM TPVS

LINAM TPVS

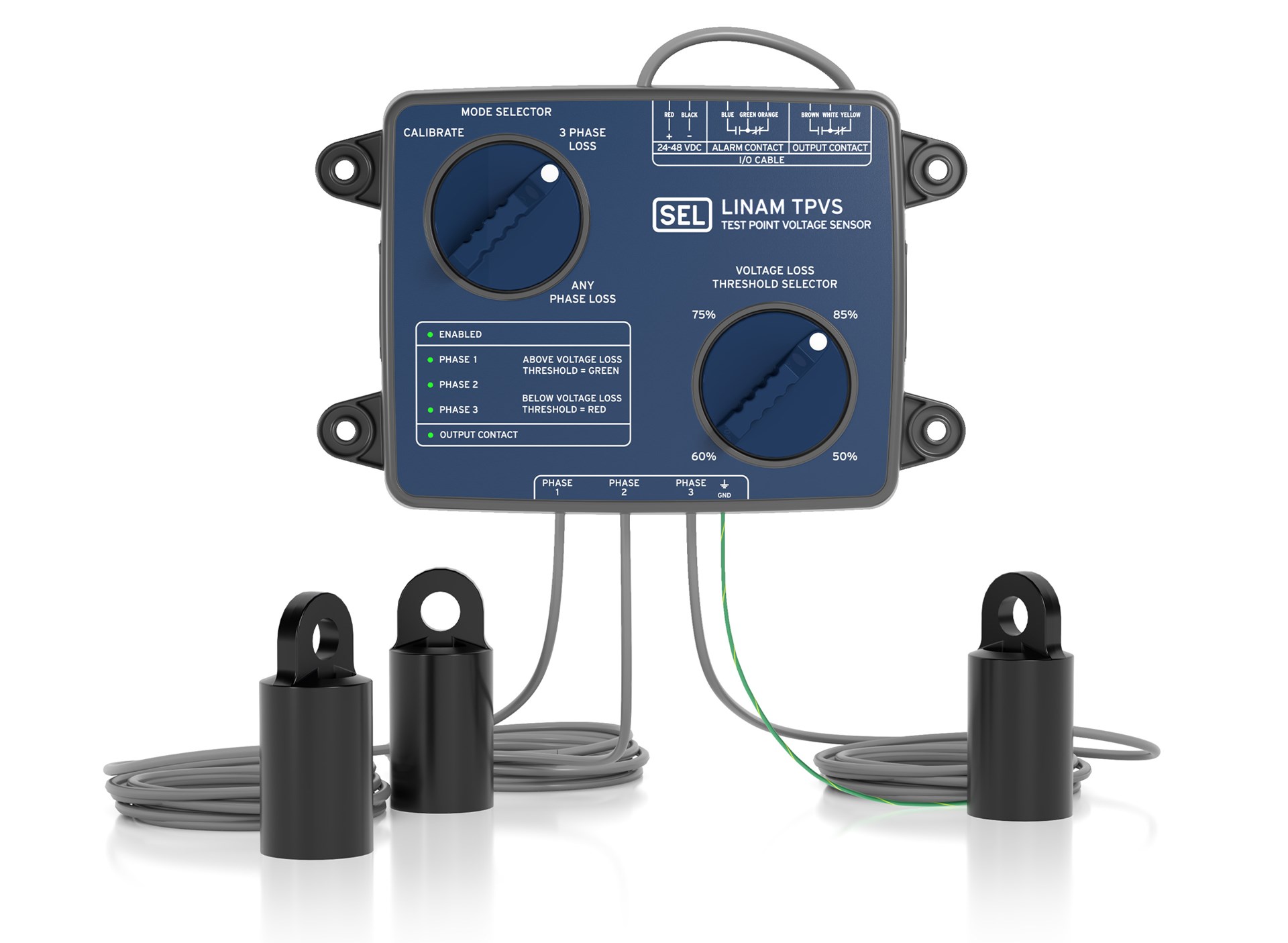

Test Point Voltage Sensor

This product has been renamed. It is identical to the SEL-3780 Test Point Voltage Sensor. The LINAM TPVS can be used in place of other voltage measurement devices, like potential transformers and elbow voltage sensors, to detect system voltage loss where exact system voltage measurement reporting is not required. The sensor installs easily on capacitive test points of distribution elbows, and its embedded logic, self-calibration feature, and wide dynamic sensing range automatically adapt to test points on elbows and t-bodies.

Starting at

$1,790

Monitor Voltage and Detect Outages

The embedded logic of the TPVS sensor provides voltage detection from test points, monitoring the test point voltage of each phase independently and eliminating the need for relay analog inputs for voltage sensors. The sensor provides status information to the follow-on device (e.g., a relay) in a pad-mounted or underground distribution source transfer switch via an output contact. Voltage tracking helps filter out noise, spikes, and variations in voltage that occur normally on distribution systems.

Automatically Transfer Sources

Apply the TPVS in automatic source transfer applications to trigger the operation of the source transfer switchgear upon a loss of voltage. When the sensor detects a loss of system voltage on the primary source that feeds mission-critical loads, it opens its output contact and signals a follow-on device (e.g., a relay) to initiate a transfer.

Simplify Inventory Needs

The TPVS is universally compatible with IEEE 386-compliant elbows and T-bodies and has two simple model variations for capacitive test points and basic insulating plugs, allowing it to cover all applications. Its wide dynamic sensing range accommodates various elbow voltage ratings and underground medium-voltage distribution systems from 2.5 to 35 kV L-L.

Quickly Retrofit Systems

Safely and easily connect TPVS sensors to distribution system test points without cutting existing cables or directly connecting equipment to medium-voltage conductors.
Related Materials

Solutions

Fault Indicators and Sensors

Product

SEL-451

Protection, Automation, and Bay Control System

Product

SEL-351S

Protection System

LINAM TPVS Features

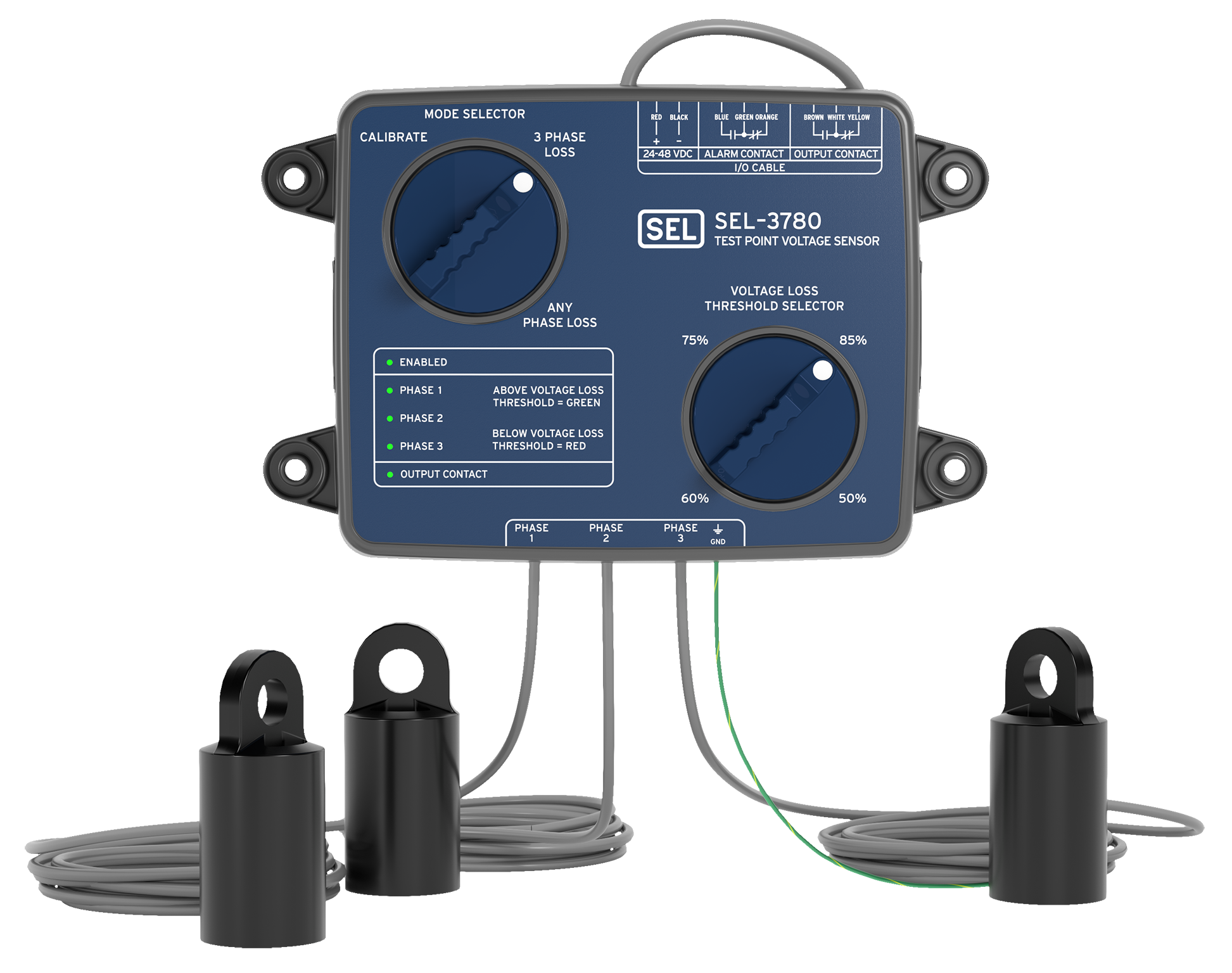

SEL-3780 Mockup_no connectors.png
1
2
3
4
  1. LEDs to indicate calibration state, phase voltage loss and presence, and output contact state
  2. Mode selector to initiate self-calibration and select operating modes
  3. Voltage loss threshold selector to set at 50%, 60%, 75%, or 85% of system voltage
  4. I/O cable to power SEL-3780 and communicate status of output and alarm contacts

LINAM TPVS Details

Self-Calibration
The TPVS features a simple and powerful self-calibration feature, which eliminates the need to factory-calibrate it to specific elbows. Within seconds of initiating self-calibration via the mode selector, the sensor adapts to the unique voltage output of each test point and stores the calibration set points within its nonvolatile memory.Automatic Voltage Tracking
The TPVS tracks the test point voltage of each phase independently, and it uses a long-term rolling average function to adapt to voltage variation over time. The sensor starts tracking system voltage after the user initiates self-calibration.Simple Installation
Use industry-standard hot-line tools to attach the sensor to capacitive test points or to basic insulating plugs without having to disconnect a distribution elbow. The control box of the sensor can be magnetically attached to the pad-mounted enclosure or fastened to a vault wall.System Integration
The TPVS can be universally applied to IEEE 386-compliant elbows and T-bodies with test points across all distribution voltage classes (2.5–35 kVL-L).Secure Operation
The TPVS continuously monitors itself to notify the user and relay of any incorrect operation. The alarm contact provides follow-on device (e.g., a relay) with the status used to block the output contact status in the event of a system or device error.
Test point type
  • Capacitive test point
  • Basic insulating plug
Sensor cable length: 12 ft or 20 ftI/O cable length: 25 ft or 50 ftAccessories
  • Adapter Ring Kit for Capacitive Test Point
  • Magnet Mount Kit for TPVS and SEL-8300
  • Sealing Kit for Basic Insulating Plug
  • SEL-MCG Magnetic Cable Guide
