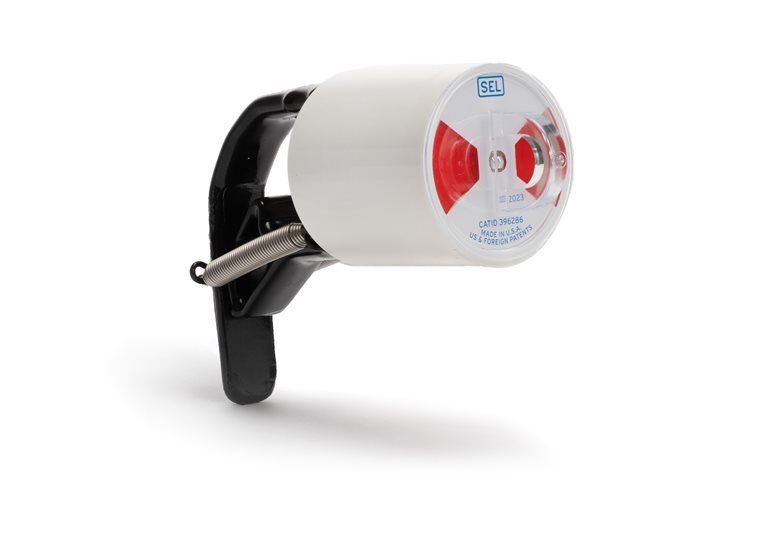

The SEL-CRD is used for fault location on overhead power distribution systems. It is powered by load current and indicates a faulted line condition by showing a large red reflective target display. The SEL-CRD automatically resets upon restoration of load current that meets the minimum load requirement.
SEL-CRDs can be installed with a single hot stick, have a 1 ms response time, and significantly reduce fault-finding times. The UV-stabilized polycarbonate housing, vinyl-coated core, and stainless steel spring make the SEL-CRD suitable for application in harsh outdoor conditions.
The SEL-CRD is powered by line current—no battery is necessary.
There is no minimum voltage requirement.
The SEL-CRD automatically resets upon restoration of the load current.
The inrush restraint feature prevents false tripping during recloser operations.
The SEL-CRD is easy to install with a single hot stick.
UV-stabilized materials provide excellent weatherability.
|Power Source||Load current|
|Nominal Trip Ratings||100 to 1,200 A|
|System Voltage Range (L-L)||Up to 38 kV|
|Reset Time||25 seconds at 3 A|
|Reset Current||3 A|
|Maximum Fault Current||25 kA|
|Trip Response Time||1 ms|
|Inrush Restraint Response Time||300 ms|
|Outer Diameter Clamping Range||0.30" to 1.40" (Specify the clamping diameter or range when ordering.)|
|Housing Material||UV-stabilized polycarbonate resin|
|Transformer Core||Silicon steel with vinyl coating|
|Approximate Weight||510 g (1.12 lbs)|
