SEL-651RD Cables and Accessories
Control Cables—Outdoor-Rated Fiber-Optic
| Model Number | Recloser Control End | IntelliRupter® PulseCloser® Fault Interrupter End | Photo | Cable Card/Drawing Link | Configurator |
|---|---|---|---|---|---|
| C860 | 4-Position Socket Contact Rectangular | 4-Position Socket Contact Rectangular | Coming Soon | Coming Soon | Coming Soon |
Power Cables
| Model Number | Recloser Control End | IntelliRupter Fault Interrupter End | Photo | Cable Card/Drawing Link | Configurator |
|---|---|---|---|---|---|
| C533 | 3-Position Socket Contact Circular | #10 Ring Terminals (for J-Box Connection) |  | Cable Card | Configure |
| C565 | 3-Position Socket Contact Circular | 3-Position Socket Contact Circular |  | Cable Card | Configure |
| C583 | 3-Position Socket Contact Circular | 3-Position Pin Contact Circular |  | Cable Card | Configure |
| C584 | 3-Position Socket Contact Circular | #10 Ring Terminals (Water-Sealed Breakout Boot, H, N, GND) |  | Cable Card | Configure |
To order SEL-651RD accessories, please refer to the SEL-651RD ordering information on the the configurator page or contact your SEL sales or customer service representative for assistance.
| Accessories | Photo |
| Accessory Mounting Kit With 12 V Auxiliary Terminal Block | Photo Not Available |
| Incoming Power Fuse Block | Photo Not Available |
| Terminal Block Wired to I/O | Photo Not Available |
| 100 W Heater |  |
| Accessories | Photo |
| SEL-2401 Satellite-Synchronized Clock With Floor-Mounted TNC Surge Protector |  |

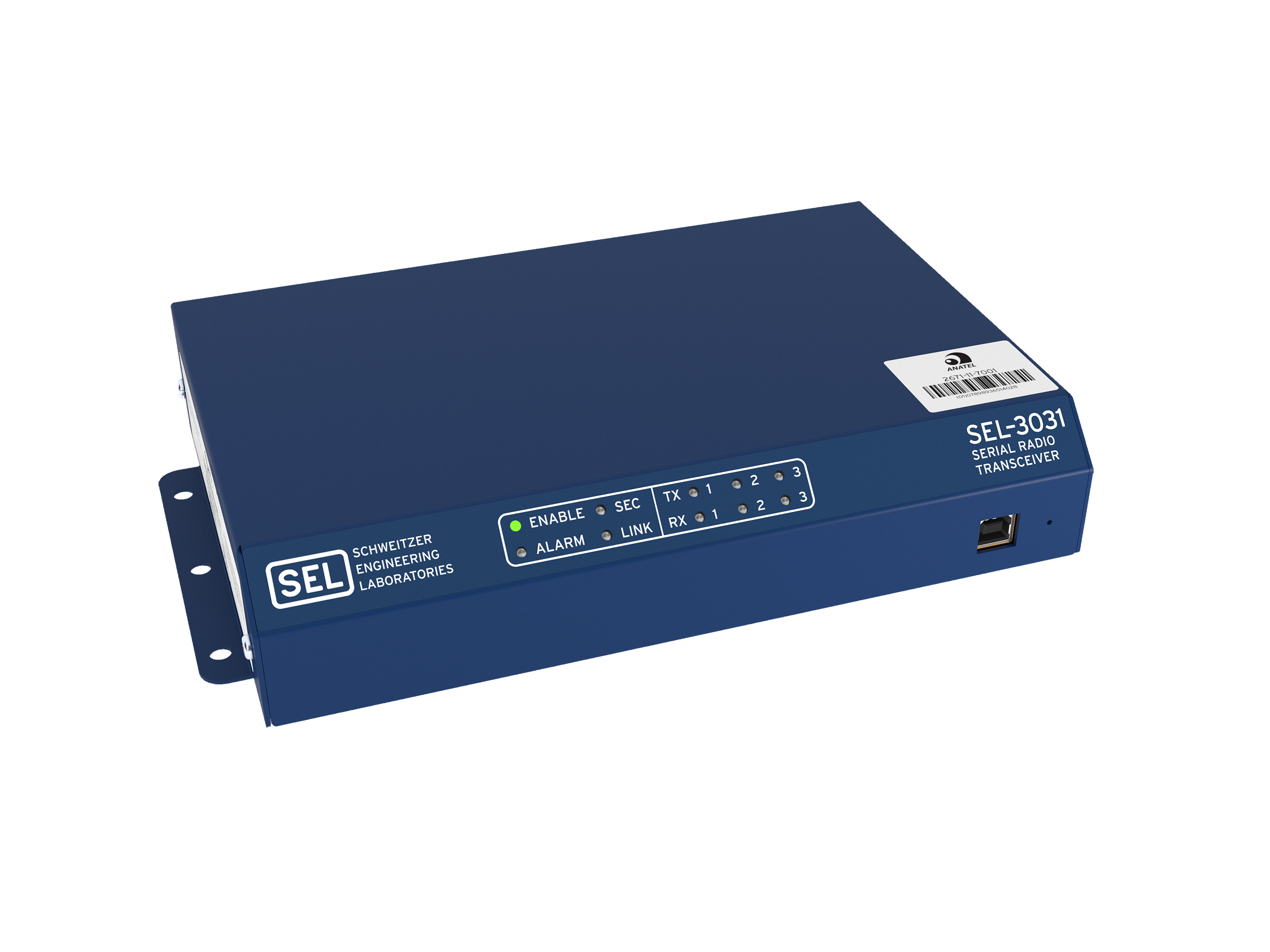

| SEL-3031 Serial Radio Transceiver (Configurable 30310B013XX) |
 |
| SEL-3061 Cellular Router (3061#J7P0) |  |
| 3-Pin Male Connector for Incoming Power (MS5015, Size 22) |  |
| Two 3-Pin Male Connector for Incoming Power (MS5015, Size 22)—Dual Power Source Applications | Photo Not Available |
| 3-Position Pin Contact Receptacle for Incoming Power (MS26482, Size 12)—Single Power Source Applications | Photo Not Available |
| Two 3-Position Pin Contact Receptacle for Incoming Power (MS26482, Size 12)—Dual Power Source Applications | Photo Not Available |
| SEL-2401 Antenna Kit | Photo Not Available |
| Radio-Ready With Single Surge Protector | Photo Not Available |
| Radio-Ready With Dual Surge Protector | Photo Not Available |
| Door Switch Wired to an Input Contact | Photo Not Available |

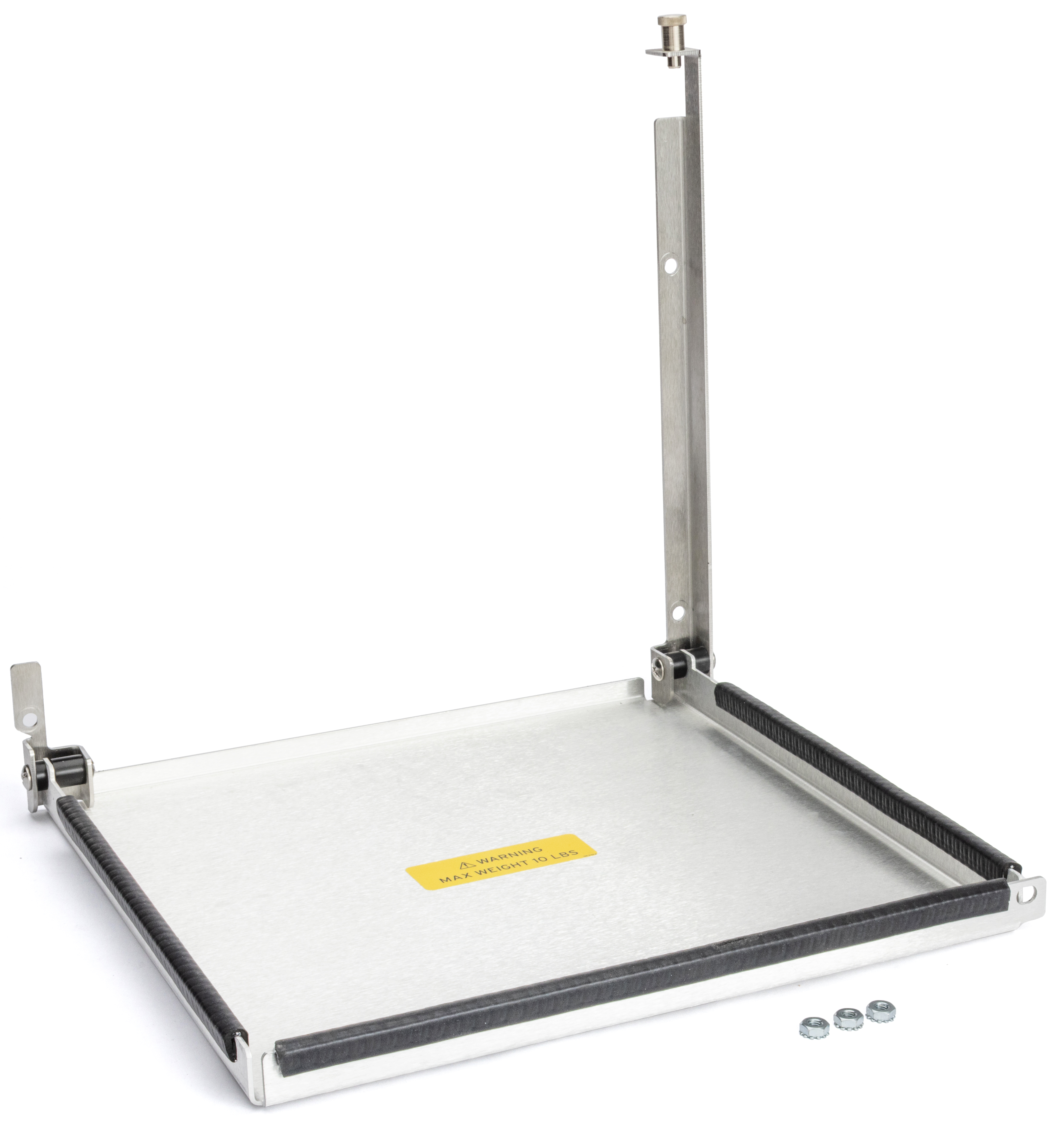

| Laptop Tray |
 |
| AC Transfer Switch |  |
| GFCI Outlet | Photo Not Available |
| 12 V, 16 Ahr Battery |  |
| 12 V, 40 Ahr Battery |  |
| Bundled Accessories (Shipped With but Not Installed) | Photo |
| Security Sleeve (2" Diameter) |  |
| Two Security Sleeves (2" Diameter) | Combination of Accessories Shown Above |
| Three Security Sleeves (2" Diameter) | Combination of Accessories Shown Above |
| Four Security Sleeves (2" Diameter) | Combination of Accessories Shown Above |
| Five Security Sleeves (2" Diameter) | Combination of Accessories Shown Above |
To order SEL-651RD accessories, contact your SEL sales or customer service representative.
| Description | Kit Number | Photo |
| 16 Ah Replacement Battery Kit (Includes C5469) | 915900200 | |
| 40 Ah Replacement Battery Kit (Includes C5469) | 915900199 | |
| Security Sleeve (2" Diameter), 3-Pin Input Power Cable | 9250011 | |
| Accessory Mounting Kit With 12 V Auxiliary Terminal Block | 9250400 | Photo Not Available |
| Fuse Block for Field Wiring | 9250401 | Photo Not Available |
| Terminal Block Wired to I/O | 9250402 | Photo Not Available |
| 100 W Heater | 9250403 | |
| 3-Pin Male Connector for Incoming Power (MS5015, Size 22) | 9250409 | .jpg) |
| SEL-2401 Satellite-Synchronized Clock (24010XXX0) Kit | 9250411 |  |
| 3-Pin Male Connector for Incoming Power (MS26482, Size 12) | 9250580 | Photo Not Available |
| Laptop Tray Kit | 915900668 | |
