SEL-651RA Cables and Accessories
Control Cables
| Model Number | Recloser Control End | Recloser End | Photo | Cable Card/Drawing Link | Configurator |
| C510 | 14-Position Socket Contact Circular | 14-Position Pin Contact Circular |  | Cable Card | Configure |

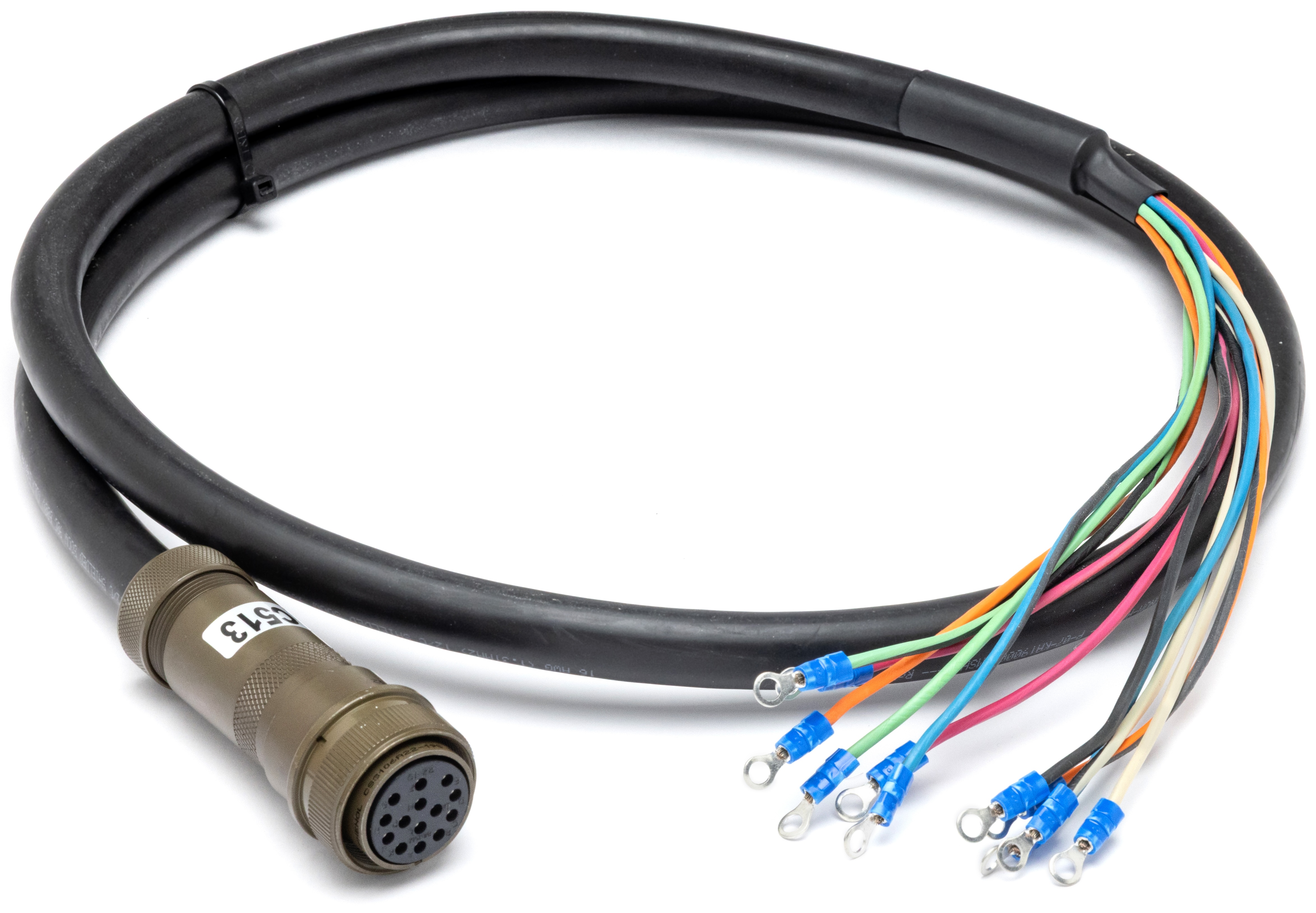

| C513 | 14-Position Socket Contact Circular | #10 Ring Terminals | No Photo Available | Cable Card | Configure |
| C520 | 14-Position Socket Contact Circular (Overmolded) | 14-Position Pin Contact Circular (Overmolded) |  | Cable Card | Configure |

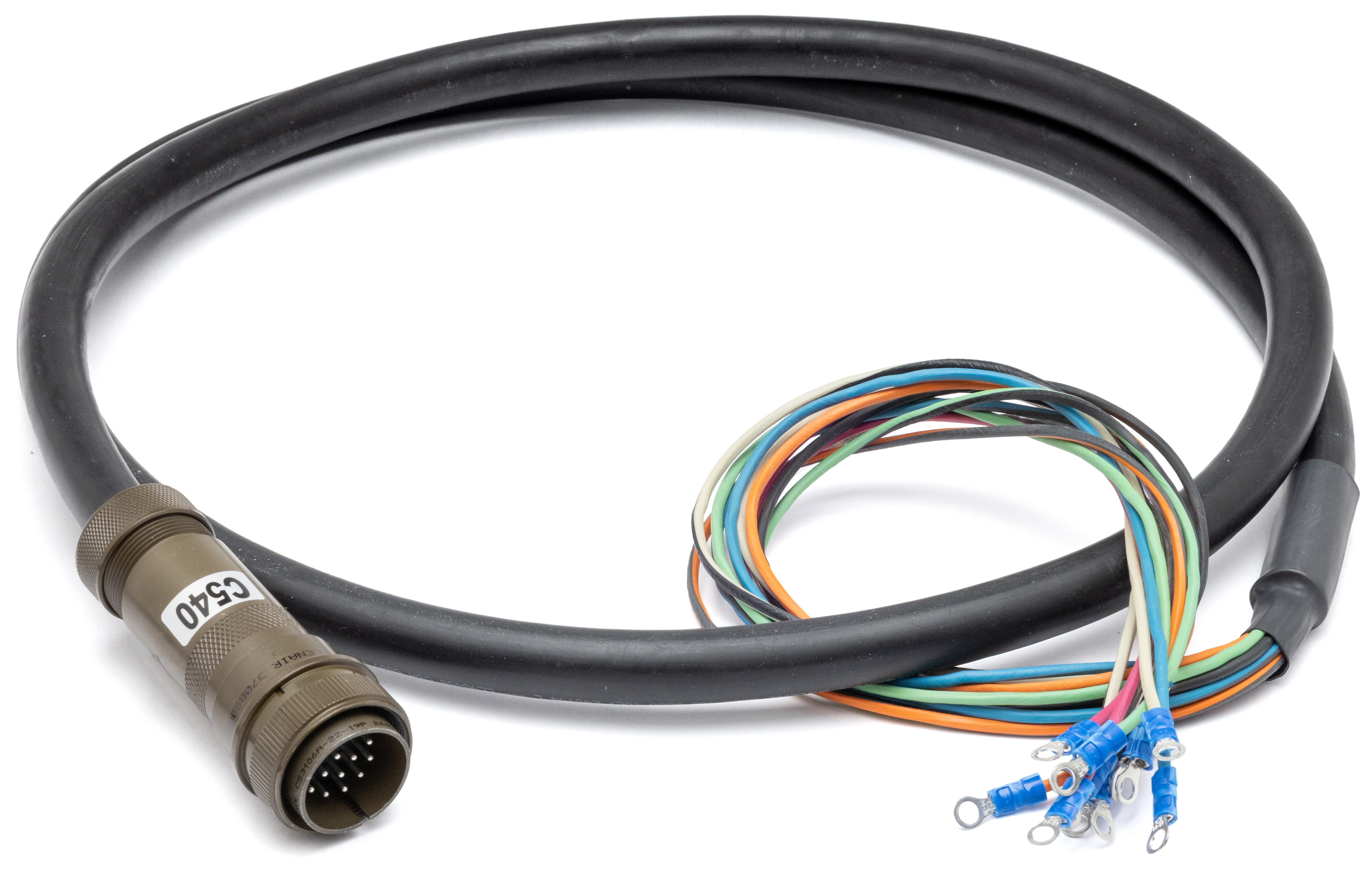

| C540 | #10 Ring Terminals | 14-Position Pin Contact Circular | No Photo Available | Cable Card | Configure |
Power Cables
| Model Number | Recloser Control End | Power Source End | Photo | Cable Card/Drawing Link | Configurator |

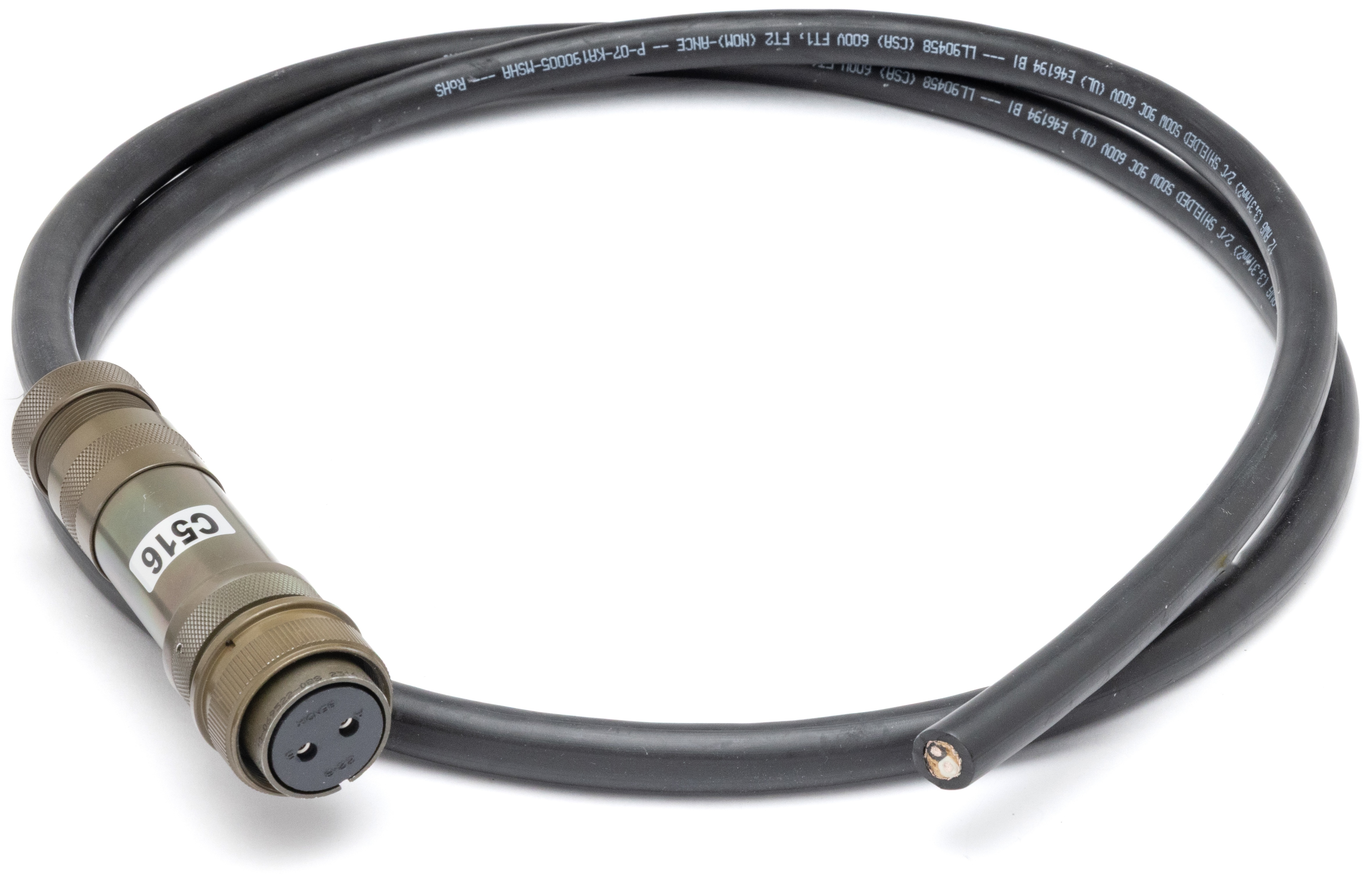

| C516 | 2-Position Socket Contact Circular | Unterminated | No Photo Available | Cable Card | Configure |

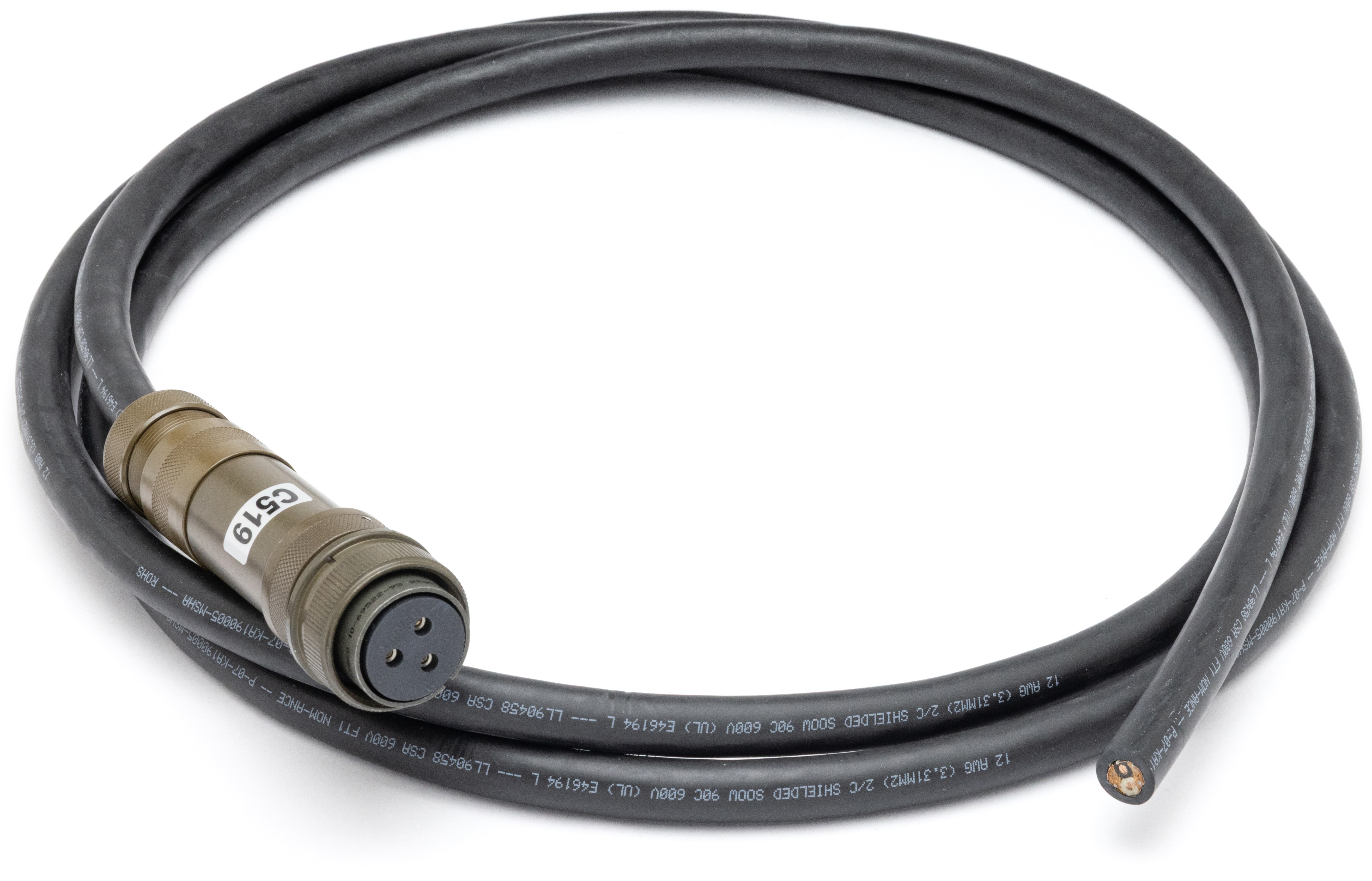

| C519 | 3-Position Socket Contact Circular | Unterminated | No Photo Available | Cable Card | Configure |

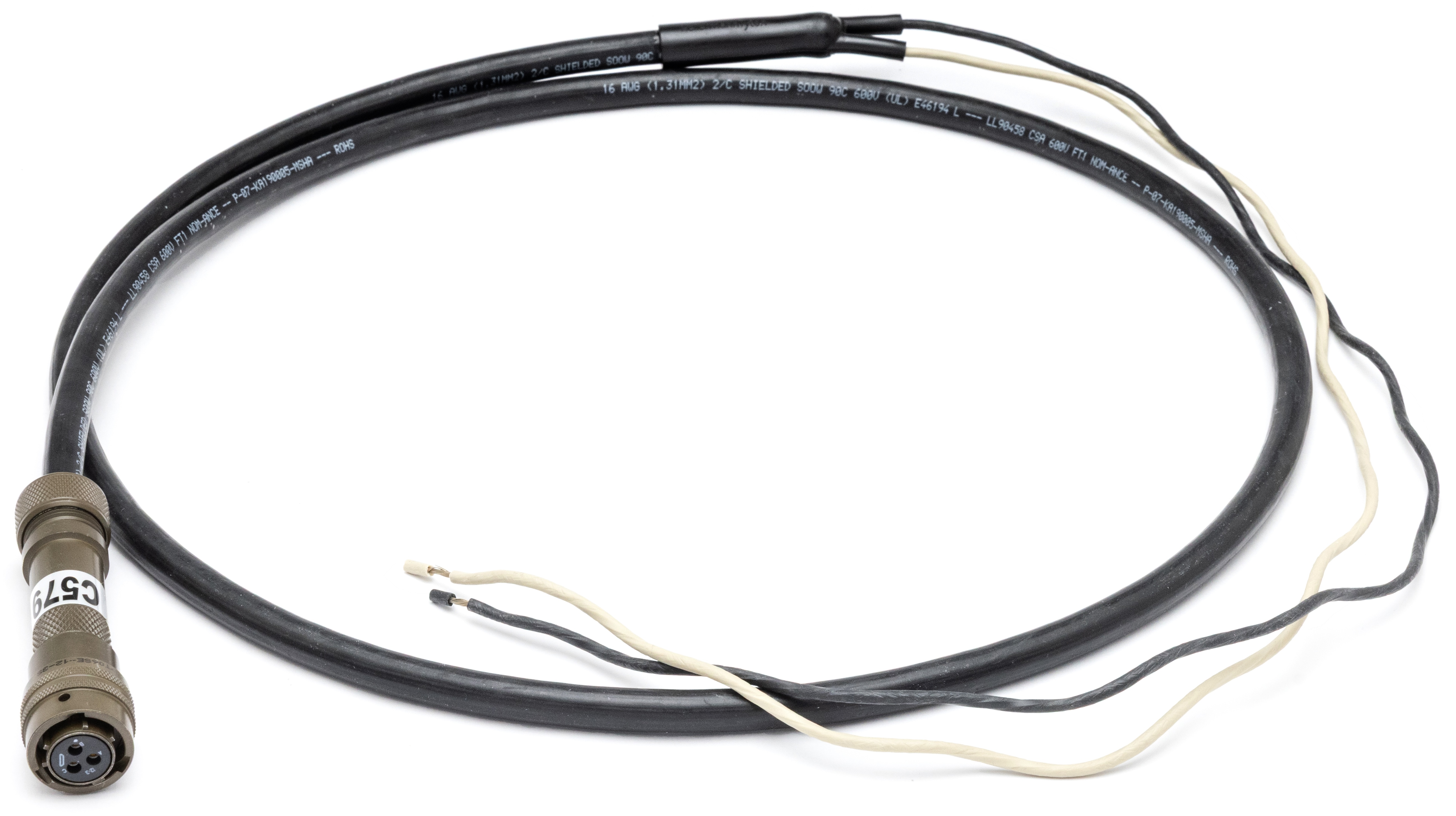

| C579 | 3-Position Socket Contact Circular | Unterminated (Water-Sealed Breakout Boot) | No Photo Available | Cable Card | Configure |
Voltage Input Cables
| Model Number | Recloser Control End | Voltage Source End | Photo | Cable Card/Drawing Link | Configurator |

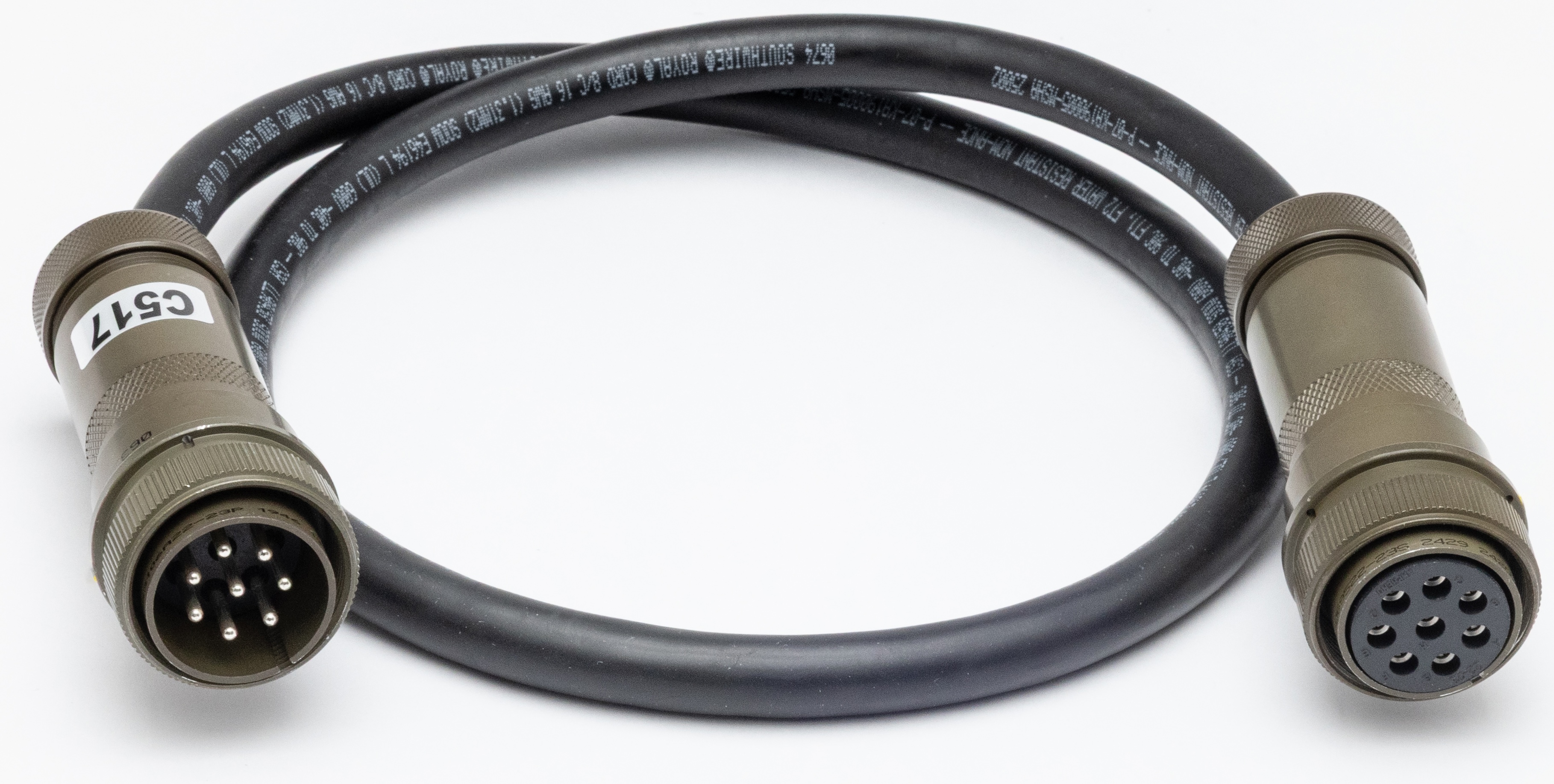

| C517 | 8-Position Socket Contact Circular | 8-Position Pin Contact Circular |  | Cable Card | Configure |

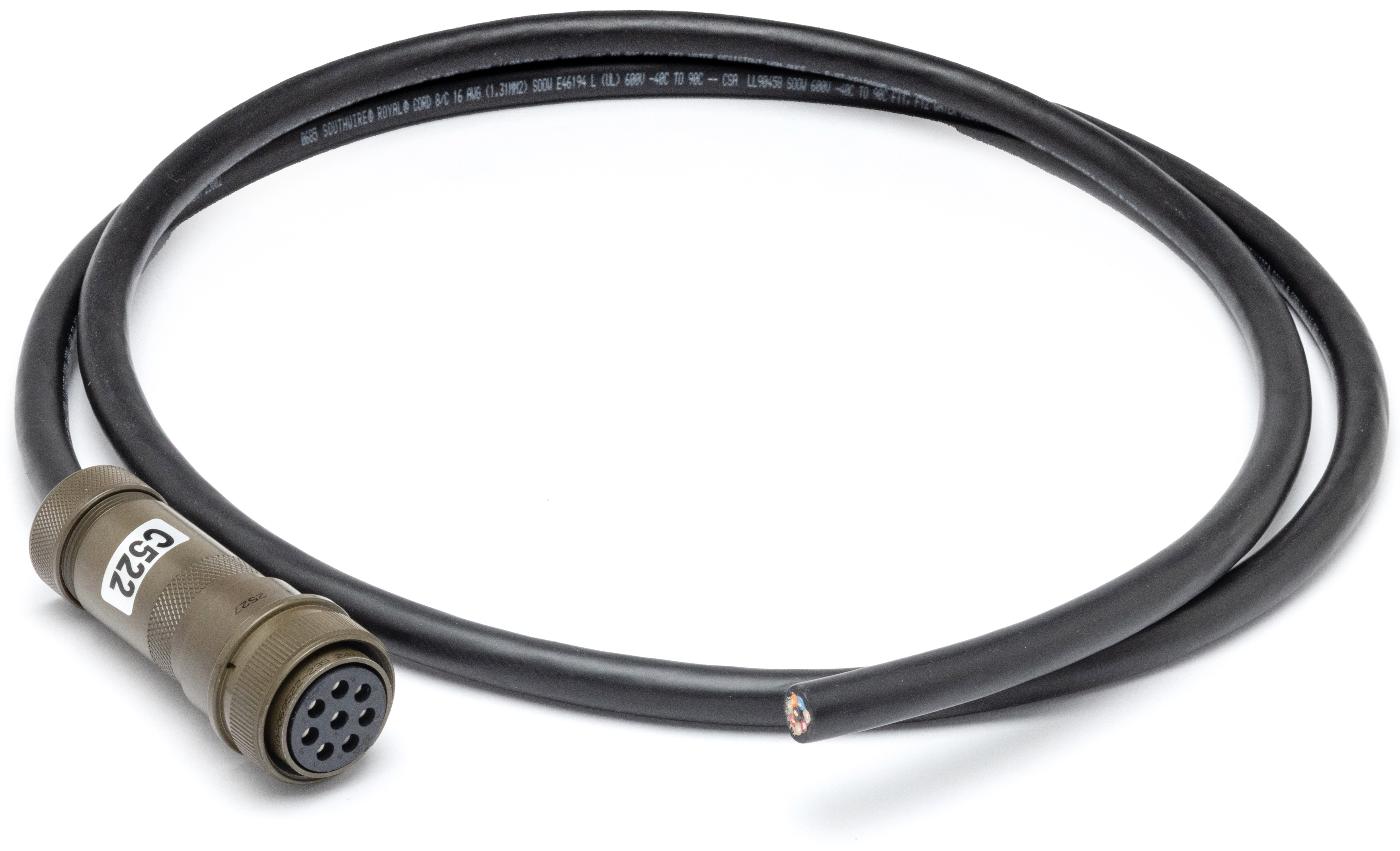

| C522 | 8-Position Socket Contact Circular | Unterminated | No Photo Available | Cable Card | Configure |

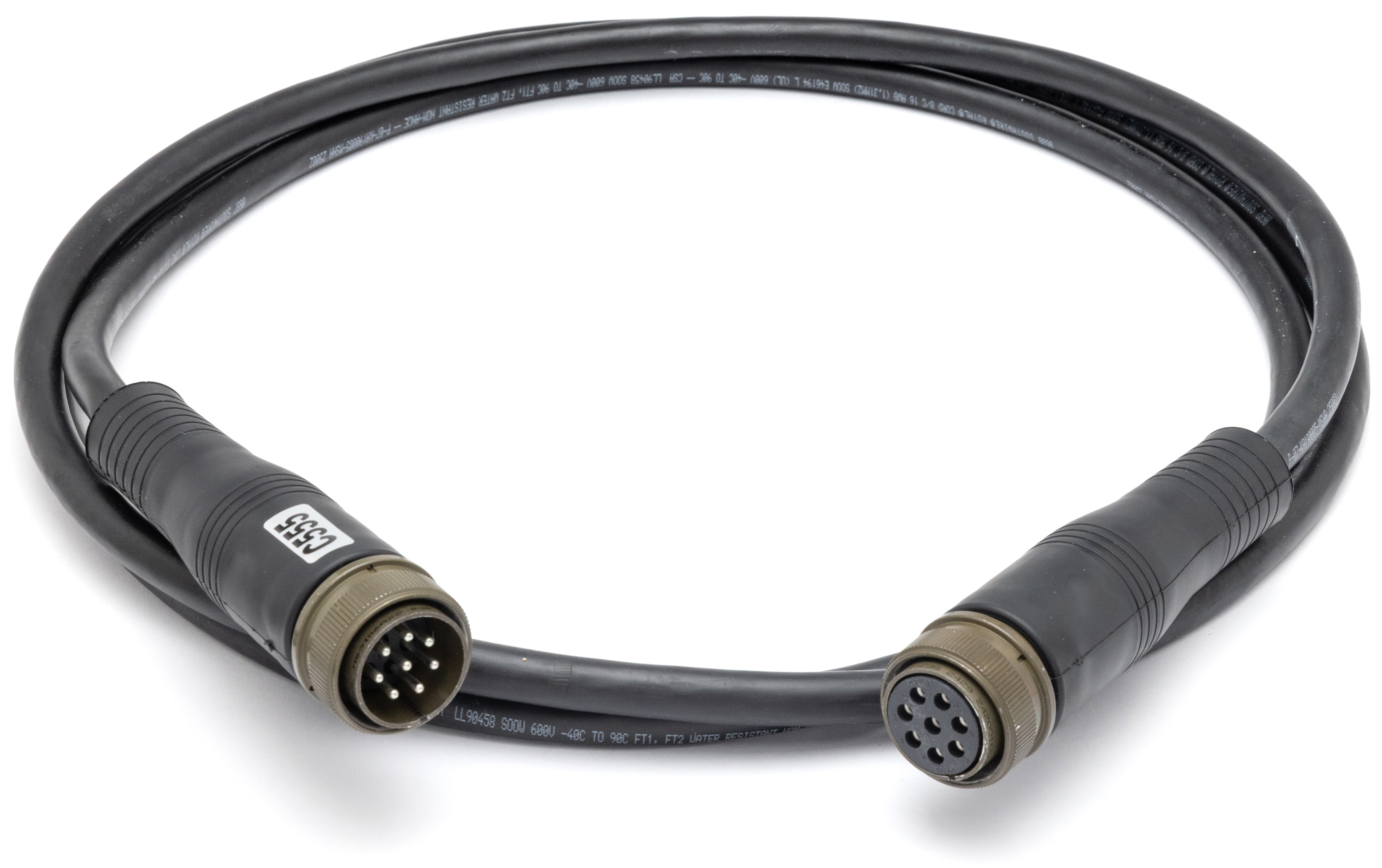

| C555 | 8-Position Socket Contact Circular (Overmolded) | 8-Position Pin Contact Circular (Overmolded) | No Photo Available | Cable Card | Configure |
Low-Voltage Close/Heater Power Cables
| Model Number | Recloser Control End | Recloser End | Photo | Cable Card/Drawing Link | Configurator |

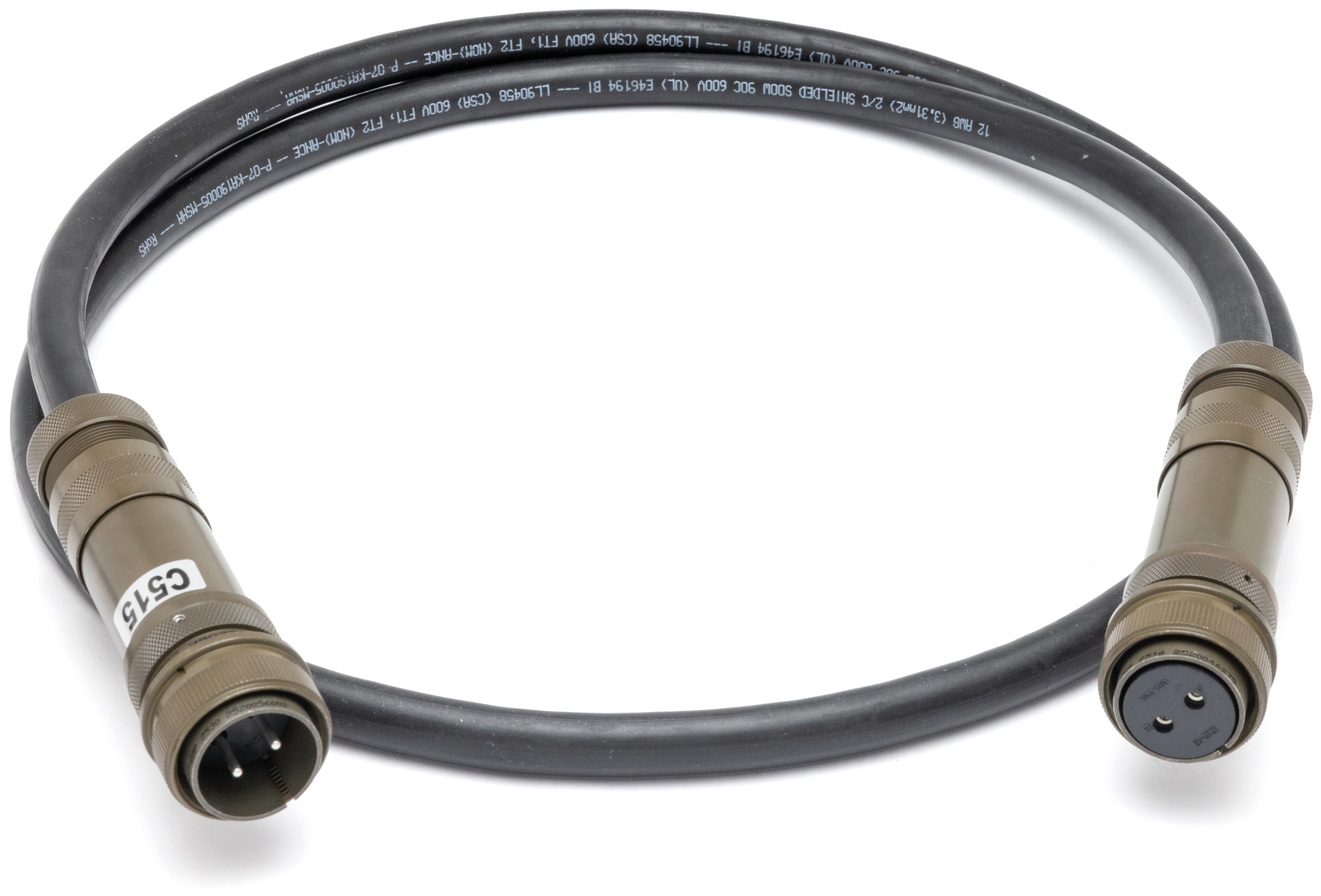

| C515 | 2-Position Pin Contact Circular | 2-Position Socket Contact Circular | No Photo Available | Cable Card | Configure |
Use the keys below to identify installed accessories located in the 20th through 24th positions of the SEL-651RA part number.
To order SEL-651RA accessories, please refer to the SEL-651RA ordering information on the the configurator page or contact your SEL sales or customer service representative for assistance.
| Accessory Infrastructure | Key | Photo |
| Accessory Mounting Kit With 12 V Auxiliary Terminal Block | 01 | Photo not available |
| Fuse Block for Field Wiring | 02 | Photo not available |
| Terminal Block Wired to I/O | 03 | Photo not available |
| 100 W Heater | 04 |  |
| Accessory Mounting Kit With 12 V Auxiliary Terminal Block and Fuse Block for Field Wiring | A | Photo not available |
| Fuse Block for Field Wiring and Terminal Block Wired to I/O | B | Photo not available |
| Accessory Mounting Kit With 12 V Auxiliary Terminal Block and 100 W Heater | C | Photo not available |
| Fuse Block for Field Wiring and 100 W Heater | D | Photo not available |
| Accessory Mounting Kit With 12 V Auxiliary Terminal Block, Fuse Block for Field Wiring, and 100 W Heater | E | Photo not available |
| Fuse Block for Field Wiring, Terminal Block Wired to I/O, and 100 W Heater | F | Photo not available |
Use the keys below to identify accessories located in the 21st position of the SEL-651RA part number.
| Low-Voltage Close and Secondary Input Voltage Connectors | Key | Photo |
| Low-Voltage Close Connector (2-pin female) | 01 |  |
| 8-Pin Connector for Voltage Inputs (MS5015 Size 22) | 02 |  |
| 8-Pin Connector for LEA Voltage Inputs (MS26482 Size 12) | 03 |  |
| 4-Pin Connector for LEA Inputs (MS5015 Size 22) | 04 |  |
| Low-Voltage Close Connector (2-pin female) and 8-Pin Connector for Voltage Inputs (MS5015 Size 22) | A | Combination of Accessories Shown Above |
| Low-Voltage Close Connector (2-pin female) and 8-Pin Connector for LEA Voltage Inputs (MS26482 Size 12) | B | Combination of Accessories Shown Above |
| Low-Voltage Close Connector (2-pin female) and 4-Pin Connector for LEA Inputs (MS5015 Size 22) | C | Combination of Accessories Shown Above |
| 8-Pin Connector for Voltage Inputs (MS5015 Size 22) and 8-Pin Connector for LEA Voltage Inputs (MS26482 Size 12) | D | Combination of Accessories Shown Above |
| 8-Pin Connector for Voltage Inputs (MS5015 Size 22) and 4-Pin Connector for LEA Inputs (MS5015 Size 22) | E | Combination of Accessories Shown Above |
| Low-Voltage Close Connector (2-pin female), 8-Pin Connector for Voltage Inputs (MS5015 Size 22), and 8-Pin Connector for LEA Voltage Inputs (MS26482 Size 12) | F | Combination of Accessories Shown Above |
| Low-Voltage Close Connector (2-pin female), 8-Pin Connector for Voltage Inputs (MS5015 Size 22), and 4-Pin Connector for LEA Inputs (MS5015 Size 22) | G | Combination of Accessories Shown Above |
Use the keys below to identify accessories located in the 22nd and 23rd position of the SEL-651RA part number.
| Accessories | Key | Photo |
| 2-Pin Male Connector for Incoming Power (MS5015 Size 22) | 10 |  |
| 3-Pin Male Connector for Incoming Power (MS5015 Size 22) | 11 |  |

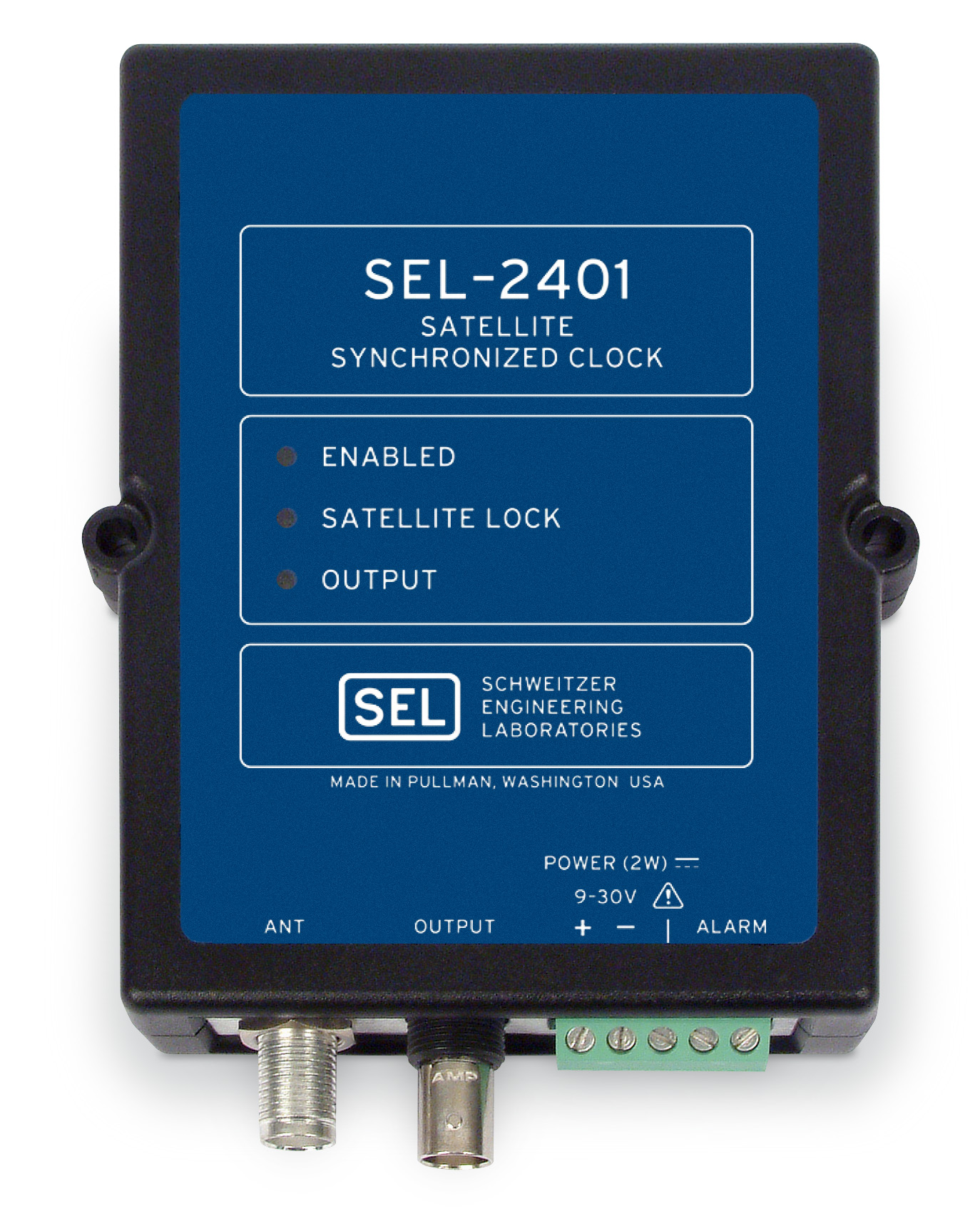

| SEL-2401 Satellite-Synchronized Clock | 13 |  |

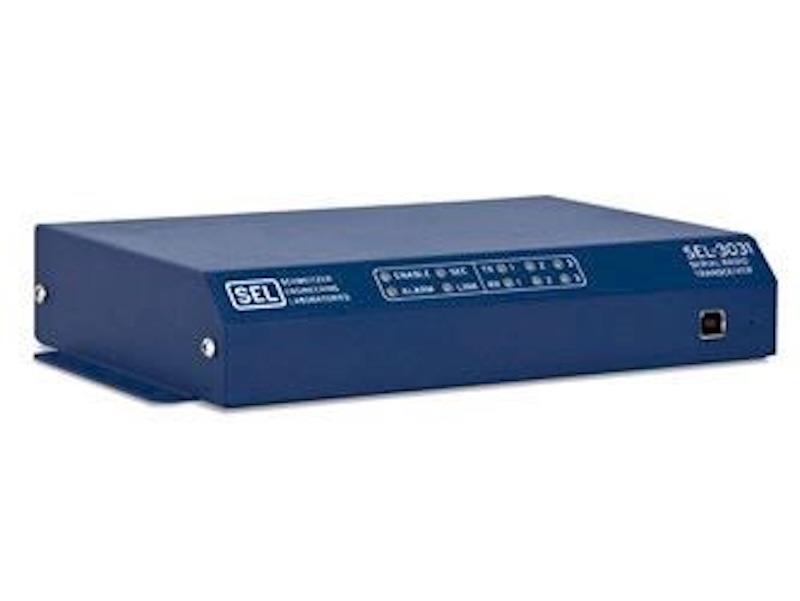

| SEL-3031 Serial Radio Transceiver (configurable) | 15 |  |
| SEL-3061 Cellular Router | 17 |  |
| 2-Pin Male Connector for Incoming Power (MS5015 Size 22) and SEL-2401 Satellite-Synchronized Clock (configurable) | A0 | Combination of Accessories Shown Above |
| 2-Pin Male Connector for Incoming Power (MS5015 Size 22) and SEL-3031 Serial Radio Transceiver (configurable) | A2 | Combination of Accessories Shown Above |
| 3-Pin Male Connector for Incoming Power (MS5015 Size 22) and SEL-2401 Satellite Synchronized Clock (configurable) | A3 | Combination of Accessories Shown Above |
| 3-Pin Male Connector for Incoming Power (MS5015 Size 22) and SEL-3031 Serial Radio Transceiver (configurable) | A5 | Combination of Accessories Shown Above |
| SEL-2401 Satellite-Synchronized Clock and SEL-3031 Serial Radio Transceiver (configurable) | A7 | Combination of Accessories Shown Above |
| 2-Pin Male Connector for Incoming Power, SEL-2401 Satellite-Synchronized Clock, and SEL-3031 Serial Radio Transceiver (configurable) | A8 | Combination of Accessories Shown Above |
Use the keys below to identify bundled accessories located in the 24th position of the SEL-651RA part number. These accessories are shipped in the box with the SEL-651RA but are not installed.
| Bundled Accessories (Shipped With but Not Installed) | Key | Photo |
| Security Sleeve (2" diameter) | 01 |  |
| Two Security Sleeves (2" diameter) | 02 | Combination of Accessories Shown Above |
| Three Security Sleeves (2" diameter) | 03 | Combination of Accessories Shown Above |
| Four Security Sleeves (2" diameter) | 04 | Combination of Accessories Shown Above |
| Five Security Sleeves (2" diameter) | 05 | Combination of Accessories Shown Above |
| Retrofit Mounting Adapter | A | Photo not available |
| Retrofit Mounting Adapter and Security Sleeve (2" diameter) | B | Photo not available |
| Retrofit Mounting Adapter and Two Security Sleeves (2" diameter) | C | Photo not available |
| Retrofit Mounting Adapter and Three Security Sleeves (2" diameter) | D | Photo not available |
| Retrofit Mounting Adapter and Four Security Sleeves (2" diameter) | E | Photo not available |
| Retrofit Mounting Adapter and Five Security Sleeves (2" diameter) | F | Photo not available |
To order SEL-651RA accessories, contact your SEL sales or customer service representative.
| Description | Kit Number | Photo |
| Retrofit Mounting Adapter Kit | 915900293 | Photo not available |
| 16 Ah Replacement Battery Kit (includes C5469) | 915900200 | Photo not available |
| 40 Ah Replacement Battery Kit (includes C5469) | 915900199 | Photo not available |
| Security Sleeve (2" diameter), 14-Pin Interface Control Cable, 2-Pin Low-Voltage Close Cable, 8-Pin Voltage/Low-Energy Analog (LEA) Cable, 4-Pin LEA Input Cable, and 3-Pin Input Power Cable | 9250011 | |
| Accessory Mounting Kit With 12 V Auxiliary Terminal Block | 9250400 | Photo not available |
| Fuse Block for Field Wiring | 9250401 | Photo not available |
| Terminal Block Wired to I/O | 9250402 | Photo not available |
| 100 W Heater | 9250403 | |
| Low-Voltage Close Connector (2-pin female) | 9250404 | .jpg) |
| 8-Pin Connector for Voltage Inputs (MS5015, Size 22) | 9250405 | .jpg) |
| 8-Pin Connector for LEA Voltage Inputs (MS26482, Size 12) | 9250406 | .jpg) |
| 4-Pin Connector for LEA Inputs (MS5015, Size 22) | 9250407 | .jpg) |
| 2-Pin Male Connector for Incoming Power (MS5015, Size 22) | 9250408 | .jpg) |
| 3-Pin Male Connector for Incoming Power (MS5015, Size 22) | 9250409 | .jpg) |
| SEL-2401 Satellite-Synchronized Clock (24010XXX0) Kit | 9250411 |  |
