SEL-735 Out-of-Box Resources

Welcome to Your New Meter

Reference materials to support your new solution

Get Started

Resources

Instruction Manual

Access the SEL-735 Instruction Manual. It describes common aspects of power quality and revenue meter applications. It also includes more detailed information about settings and commands.

Quick-Start Guide

Download the SEL-735 Quick-Start Guide to learn how to install, configure, test, and operate your new SEL-735 Power Quality and Revenue Meter.

How-To Videos

Watch our metering support videos for additional help getting started.

Installation Options and Accessories

Learn how to install your meter using various SEL bracket and mounting kits. Download the Metering Accessories Catalog to view other accessories that can easily expand your system’s flexibility and integration capabilities.

Managing Your Software

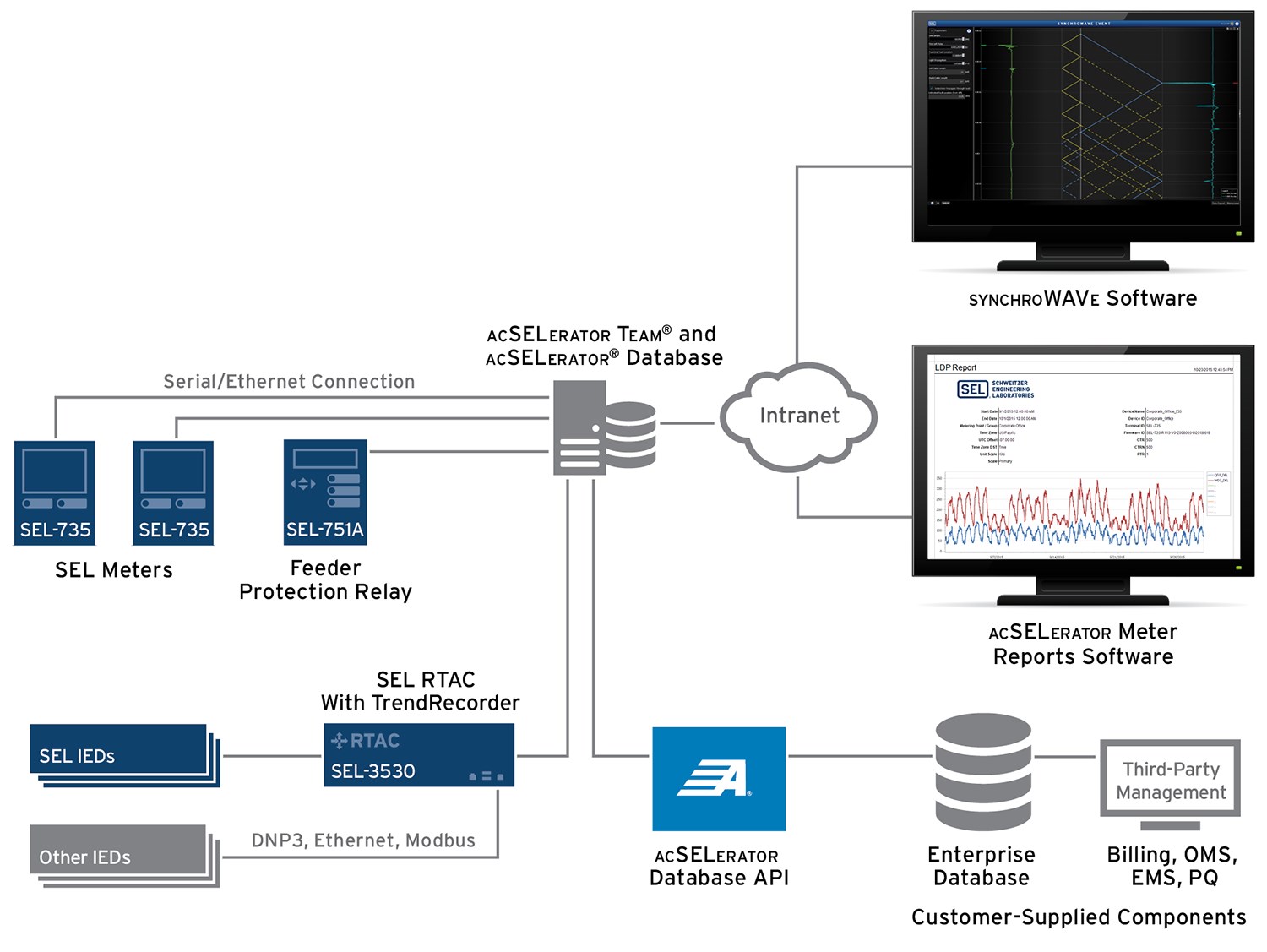

Enterprise Data Collection and Reporting Software Bundle

The bundle combines acSELerator Team SEL-5045 Software and acSELerator Meter Reports SEL-5630 Software. Team automates the collection and reporting of your power system data from multiple devices to a central location for easy access. Meter Reports visualizes the metering data collected and stored by Team, allowing you to quickly analyze data, identify usage trends, and diagnose system problems. With the software bundle, you receive a one-unit license of Team Profile for billing, Team Events for waveform data, and Meter Reports for visualization and analysis.

It Is Not Too Late to Purchase a Software Bundle

If you did not purchase the software bundle and would like to, contact your customer service representative for details about our SEL-5995-0001 software bundle accessory.

Software Bundle How-Tos

Download Team and Meter Reports.
Generate a new license via the licensing portal using your SEL-provided activation ID.
Activate your Team and Meter Reports licenses.
View flyers, datasheets, and instruction manuals for Team and Meter Reports.
Contact SEL technical support for assistance if you experience issues downloading software.

Configuration Software

acSELerator QuickSet SEL-5030 Software is an easy-to-use yet powerful tool with template design capabilities for easy, consistent settings and applications to help you get the most out of your SEL meter.

Download QuickSet now

Additional Software Integration Solutions

Analyze Event Data

SEL-5601-2 synchroWAVe Event Software displays SEL meter event reports and COMTRADE files, allowing you to easily analyze and diagnose your system’s behavior before and during a power system fault. Combine synchroWAVe Event with Team to fully automate event report retrieval and display.

Integrate Data Reporting

acSELerator Database API SEL-5230 Software provides third-party software tools with access to data collected by Team and archived in the acSELerator Database. This allows your different enterprise-level systems, such as an energy management system or a billing system, to integrate data reporting.

Frequently Asked Questions

After you have read through the Quick-Start Guide, you may have a few questions. Here are the most common ones our support team is asked.

How do I change the meter’s wiring form?

What are the wiring diagrams for common installations?

The diagrams below show the connections for Form 5, 9, and 36.

Form 5, 3-wire delta connection

Voltages
Wire the phase-to-phase voltages to terminals Z07 and Z09. Connect the neutral wire to terminals Z08 and Z10.

Currents
Wire the currents to terminals Z01–Z02 and Z05–Z06.

Form 9, 4-wire wye connection

Voltages
Wire the phase-to-neutral voltages to terminals Z07, Z08, and Z09. Connect the neutral wire to terminal Z10.

Currents
Wire the currents to terminals Z01–Z02, Z03–Z04, and Z05–Z06.

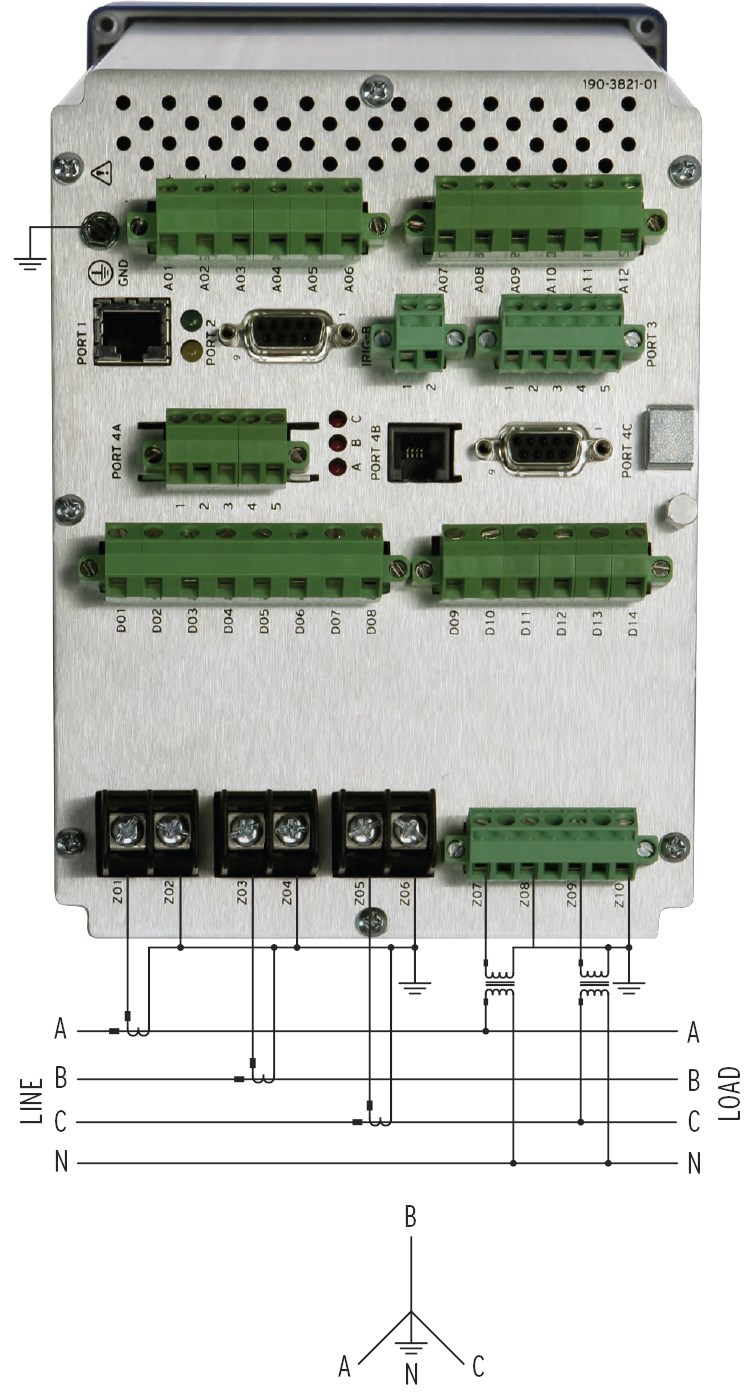

Form 36, 4-wire wye connection

Voltages
Wire the phase-to-neutral voltages to terminals Z07 and Z09. Connect the neutral wire to terminals Z08 and Z10.

Currents
Wire the currents to terminals Z01–Z02, Z03–Z04, and Z05–Z06.

What are the terminal connection specifications?

Follow these steps to use the connectorized terminals.

Ensure that the conductor size is between 0.25 mm2 (24 AWG) and 4 mm2 (12 AWG).
Strip the conductor end to ensure an electrical connection is made.
Insert the bare conductor into the connection and past the connection jaw.
Tighten the connector to about 0.79 Nm (7 in-lb) of torque.
Complete other wiring connections.
Hand-tighten the Connectorized connection mounting screws to the proper terminal on the SEL-735.

How can I tell if the software bundle was purchased with my meter?

Get Support

SEL Technical Support Line: +1.509.338.3838 • Find Your Local Contact

Every SEL solution comes with lifetime technical support, free of charge.

There are no service contracts, time limits, or expiration dates. No matter how often you call or how long your SEL products have been in service, you’ll reach a friendly human who can provide the service and support you need.

Our support teams are stationed in regional offices around the world and staffed with application engineers who are experts in our products and in power system applications. We’re always ready with the information and resources needed to keep your SEL solution working effectively.

Get Training

APP 735: SEL-735 Power Quality and Revenue Meter

Increase your metering knowledge and understand real-world applications with this hands-on SEL University training course. The course provides training exercises and settings guidance to use the SEL-735 in power quality and revenue metering applications. In a lab environment, monitor energy flow, get notified of system problems with SELogic control equations, test accuracy, determine connection requirements, and communicate with the meter.

FOR x
Where x =	9 (Form 9, 3-element, 4-wire wye),
	5 (Form 5, 2-element, 3-wire delta), or
	36 (Form 36, 2 ½-element, 4-wire wye)
