SEL Mounting Selector


The SEL Mounting Selector is intended to support searches for bezels, brackets, dust/splash protection frames, and other mounting options.

Filter
Product Series
Category
Plate Type
Dimensions
Installs Into
Purpose
Description
Color
Replacement
Results
(80)
Product Series 734/735
Part Number 915900159
Category 3/4 DIN Platform
Plate Type Bezel
Dimensions
Bezel Dimensions:


L: 168.28 mm (6.625 in)


W: 231.78 mm (9.125 in)


D: 12.7 mm (0.5 in)





Stud Location Dimensions:


L: 155.5 mm (6.122 in)


W: 111.10 mm (4.374 in)
Installs Into Panel
Purpose Retrofit
Description 2 FT-1 Switch Cutouts
Color Gray
Replacement
GE S1 (IAC S1)

Drawings i9194

Product Series 734/735
Part Number 915900216
Category 3/4 DIN Platform
Plate Type Bezel
Dimensions
5U
Installs Into 19 in. Rack - 5U
Purpose Adaptor
Description 7xx EXM with FT-1
Color Gray
Replacement

Drawings i9258

Product Series 734/735
Part Number 915900024
Category 3/4 DIN Platform
Plate Type Bezel
Dimensions
Bezel Dimensions:


L: 244.5 mm (9.63 in)


W: 421.6 mm (16.6 in)





Stud Location Dimensions:


L: 206.4 mm (8.13 in)


W: 304.8 mm (12.0 in)
Installs Into Panel
Purpose Retrofit
Description Single Horizontal Meter
Color Gray
Replacement
GE/Multilin 269 Drawout
GE/Multilin 269 Plus Drawout
Basler MPS200

Drawings i9072

Product Series 734/735
Part Number 915900165
Category 3/4 DIN Platform
Plate Type Bezel
Dimensions
Bezel Dimensions:


L: 205.74 mm (8.1 in)


W: 297.18 mm (11.7 in)


D: 12.7 mm (0.5 in)





Stud Location Dimensions:


L: 155.57 mm (6.125 in)


W: 276.22 mm (10.875 in)
Installs Into Panel
Purpose Retrofit
Description 7xx/24xx Vertical Retrofit with FT-1 Switch Cutout
Color Gray
Replacement
GE/Multilin 169
GE/Multilin 269
GE/Multilin 269 Plus
GE/Multilin 369
Eaton FP5000

Drawings i9197

Product Series 734/735
Part Number 915900050
Category 3/4 DIN Platform
Plate Type Bracket
Dimensions
Installs Into 19 in. Rack - 5U/Panel
Purpose Adaptor
Description Single Vertical 7xx/24xx Bracket
Color Gray
Replacement

Drawings i9128

Product Series 734/735
Part Number 915900092
Category 3/4 DIN Platform
Plate Type NEMA Outdoor Enclosure
Dimensions
Installs Into Enclosure
Purpose Enclosure
Description Horizontal 7xx NEMA4 Outdoor Enclosure, No FT-1 Cutout, Horizontal
Color Gray
Replacement

Drawings i9131

Product Series 734/735
Part Number 915900080
Category 3/4 DIN Platform
Plate Type Bezel
Dimensions
Bezel Dimensions:


L: 216.4 mm (8.52 in)


W: 252.22 mm (9.93 in)


D: 12.7 mm (0.5 in)





Stud Location Dimensions:


L: 179.32 mm (7.06 in)


W: 223.77 mm (8.81 in)
Installs Into Panel
Purpose Retrofit
Description 7xx/24xx Vertical Retrofit
Color Gray
Replacement
GE 700 Series

Drawings i9108

Product Series 734/735
Part Number 915900086
Category 3/4 DIN Platform
Plate Type Bezel
Dimensions
Bezel Dimensions:


L: 223.7 mm (8.807 in)


W: 265.9 mm (10.469 in)


D: 12.7 mm (0.5 in)





Stud Location Dimensions:


L: 200.87 mm (7.908 in)


W: 244.97 mm (9.645 in)
Installs Into Panel
Purpose Retrofit
Description 7xx/24xx Vertical Retrofit
Color Gray
Replacement
ABB 500 Series (1/2 rack case)

Drawings i9115

Product Series 734/735
Part Number 915900197
Category 3/4 DIN Platform
Plate Type Bezel
Dimensions
Bezel Dimensions:


L: 177.8 mm (7.0 in)


W: 243.84 mm (9.6 in)


D: 12.7 mm (0.5 in)





Stud Location Dimensions:


L: 149.35 mm (5.88 in)


W: 149.35 mm (5.88 in)
Installs Into Panel
Purpose Retrofit
Description 701/Simpro
Color Gray
Replacement

Drawings i9226

Product Series 734/735
Part Number 915900081
Category 3/4 DIN Platform
Plate Type Bezel
Dimensions
Bezel Dimensions:


D: 12.7 mm (0.5 in)





Stud Location Dimensions:


None
Installs Into Panel
Purpose Retrofit
Description 7xx/24xx Vertical Retrofit
Color Gray
Replacement
Basler 851/951

Drawings i9109

Product Series 734/735
Part Number 915900355
Category 3/4 DIN Platform
Plate Type Bezel
Dimensions
Bezel Dimensions:


L: 482.6 mm (19.0 in)


W: 352.4 mm (13.88 in)


D: 12.7 mm (0.5 in)





Stud Location Dimensions:


L: 465.1 mm (18.31 in)


W: 277.8 mm (10.94 in)
Installs Into Panel
Purpose Retrofit
Description 7xx Vertical Retrofit
Color Gray
Replacement
GE DGP

Drawings i9329

Product Series 734/735
Part Number 915900136
Category 3/4 DIN Platform
Plate Type Bracket
Dimensions
Installs Into Panel
Purpose Bracket
Description Hinged Wall-Mount Bracket, Vertical
Color Gray
Replacement

Drawings i9161

Product Series 734/735
Part Number 915900007
Category 3/4 DIN Platform
Plate Type Bracket
Dimensions
Installs Into 19 in. Rack - 4U
Purpose Bracket
Description Single Horizontal 7xx/24xx Bracket
Color Gray
Replacement

Drawings i9068

Product Series 734/735
Part Number 915900082
Category 3/4 DIN Platform
Plate Type Bezel
Dimensions
Bezel Dimensions:


L: 261.0 mm (10.276 in)


W: 266.0 mm (10.472 in)


D: 12.7 mm (0.5 in)





Stud Location Dimensions:


L: 244.0 mm (9.606 in)


W: 200.0 mm (7.874 in)
Installs Into Panel
Purpose Retrofit
Description 7xx/24xx Vertical Retrofit
Color Gray
Replacement
ABB 500 Series

Drawings i9110

Product Series 734/735
Part Number 915900275
Category 3/4 DIN Platform
Plate Type Bezel
Dimensions
Installs Into Panel
Purpose Retrofit
Description Vertical Retrofit
Color Gray
Replacement
Square-D Power Logic 2000

Drawings i9304

Product Series 734/735
Part Number 915900093
Category 3/4 DIN Platform
Plate Type NEMA Outdoor Enclosure
Dimensions
Installs Into Enclosure
Purpose Enclosure
Description Vertical 7xx NEMA4 Outdoor Enclosure, No FT-1 Cutout, Vertical
Color Gray
Replacement

Drawings i9132

Product Series 734/735
Part Number 915900176
Category 3/4 DIN Platform
Plate Type Front-Panel Sealing Cover
Dimensions
Installs Into Vertical SEL-734 and EXM
Purpose Front-Panel Sealing and Tamper Evidence
Description SEL-734 Front-Panel Sealing Cover Kit
Color Blue
Replacement

Drawings i9211

Product Series 734/735
Part Number 915900196
Category 3/4 DIN Platform
Plate Type Bezel
Dimensions
Bezel Dimensions:


L: 228.9 mm (9.01 in)


W: 384.2 mm (15.13 in)





Stud Location Dimensions:


L: 190.5 mm (7.5 in)


W: 57.1 mm (2.25 in)
Installs Into Panel
Purpose Retrofit
Description 7xx EXM Retrofit
Color Gray
Replacement
JEMSTAR SB to 7xx EXM

Drawings i9225

Product Series 734/735
Part Number 915900142
Category 3/4 DIN Platform
Plate Type Blank Plate
Dimensions
Bezel Dimensions:


L: 168.28 mm (6.625 in)


W: 384.18 mm (15.125 in)


D: 12.7 mm (0.5 in)





Stud Location Dimensions:


L: 155.50 mm (6.122 in)


W: 263.51 mm (10.374 in)
Installs Into Panel
Purpose Retrofit
Description Blank Cover Plate
Color Gray
Replacement
GE M1

Drawings i9171

Product Series 734/735
Part Number 915900069
Category 3/4 DIN Platform
Plate Type Bezel
Dimensions
Bezel Dimensions:


L: 177.8 mm (7.0 in)


W: 384.18 mm (15.125 in)


D: 12.7 mm (0.5 in)





Stud Location Dimensions:


L: 153.99 mm (6.063 in)


W: 361.97 mm (14.251 in)
Installs Into Panel/Enclosure
Purpose Retrofit
Description Single Vertical Meter
Color Gray
Replacement
JEM 1/10 SB

Drawings i9118

Product Series 734/735
Part Number 915900077
Category 3/4 DIN Platform
Plate Type Bezel
Dimensions
Bezel Dimensions:


L: 162.05 mm (6.38 in)


W: 264.16 mm (10.4 in)


D: 12.7 mm (0.5 in)





Stud Location Dimensions:


L: 141.22 mm (5.56 in)


W: 246.13 mm (9.69 in)
Installs Into Panel/Enclosure
Purpose Retrofit
Description Single Vertical Meter
Color Gray
Replacement
Siemens Q4 Short SB

Drawings i9126

Product Series 734/735
Part Number 915900051
Category 3/4 DIN Platform
Plate Type Bracket
Dimensions
Installs Into 19 in. Rack - 5U/Panel
Purpose Adaptor
Description Two Vertical 7xx/24xx Bracket
Color Gray
Replacement

Drawings i9093

Product Series 734/735
Part Number 915900158
Category 3/4 DIN Platform
Plate Type Bracket
Dimensions
5U
Installs Into 19 in. Rack - 5U
Purpose Adaptor
Description 19" Rack-Mount and two FT-1 Test Switches
Color Gray
Replacement
7xx vertical

Drawings i9193

Product Series 734/735
Part Number 915900143
Category 3/4 DIN Platform
Plate Type Blank Plate
Dimensions
Bezel Dimensions:


L: 171.45 mm (6.75 in)


W: 419.1 mm (16.5 in)


D: 12.7 mm (0.5 in)





Stud Location Dimensions:


L: 141.29 mm (5.563 in)


W: 400.03 mm (15.749 in)
Installs Into Panel
Purpose Retrofit
Description Blank Cover Plate
Color Gray
Replacement
ABB-FT 31/32 (CO FT-3)

Drawings i9172

Product Series 734/735
Part Number 915900198
Category 3/4 DIN Platform
Plate Type Bezel
Dimensions
Bezel Dimensions:


L: 320.0 mm (12.6 in)


W: 195.6 mm (7.7 in)





Stud Location Dimensions:


None
Installs Into Panel
Purpose Retrofit
Description 7xx Retrofit
Color Gray
Replacement
PML 37xx to 7xx

Drawings i9227

Product Series 734/735
Part Number 915900008
Category 3/4 DIN Platform
Plate Type Bracket
Dimensions
Installs Into 19 in. Rack - 4U/Panel
Purpose Bracket
Description Two Horizontal 7xx/24xx Bracket
Color Gray
Replacement

Drawings i9069

Product Series 734/735
Part Number 915900144
Category 3/4 DIN Platform
Plate Type Blank Plate
Dimensions
Bezel Dimensions:


L: 161.93 mm (6.375 in)


W: 184.15 mm (7.25 in)


D: 12.7 mm (0.5 in)





Stud Location Dimensions:


L: 141.3 mm (5.563 in)


W: 165.1 mm (6.5 in)
Installs Into Panel
Purpose Retrofit
Description Blank Cover Plate
Color Gray
Replacement
ABB-FT 11 (CO FT-1)

Drawings i9173

Product Series 734/735
Part Number 915900193
Category 3/4 DIN Platform
Plate Type Bezel
Dimensions
Bezel Dimensions:


L: 228.9 mm (9.01 in)


W: 384.2 mm (15.13 in)





Stud Location Dimensions:


None
Installs Into Panel
Purpose Retrofit
Description 7xx EXM Retrofit
Color Gray
Replacement
JEM 1/10 SB

Drawings i9221

Product Series 734/735
Part Number 915900230
Category 3/4 DIN Platform
Plate Type Blank Plate
Dimensions
Bezel Dimensions:


L: 168.28 mm (6.625 in)


W: 261.92 mm (10.312 in)


D: 12.7 mm (0.5 in)





Stud Location Dimensions:


L: 141.27 mm (5.562 in)


W: 155.5 mm (6.122 in)
Installs Into Panel
Purpose Retrofit
Description Blank Cover Plate
Color Gray
Replacement
GE MDP/S2

Drawings i9274

Product Series 734/735
Part Number 915900063
Category 3/4 DIN Platform
Plate Type Bracket
Dimensions
Installs Into Surface Mount/Panel
Purpose Retrofit
Description 7xx vertical or horizontal single panel - hinged bracket
Color Gray
Replacement

Drawings i9092

Product Series 734/735
Part Number 915900083
Category 3/4 DIN Platform
Plate Type Bezel
Dimensions
Bezel Dimensions:


D: 12.7 mm (0.5 in)





Stud Location Dimensions:


None
Installs Into Panel
Purpose Retrofit
Description 7xx/24xx Vertical Retrofit
Color Gray
Replacement
Siemens 7SJ61 (1/3 rack case)

Drawings i9111

Product Series 734/735
Part Number 915900387
Category 3/4 DIN Platform
Plate Type Blank Plate
Dimensions
Bezel Dimensions:


L: 192.0 mm (7.56 in)


W: 144.0 mm (5.67 in)


D: 0.68 in x 5.61 in
Installs Into Panel
Purpose Retrofit
Description 241x/7xx Blanker Plate
Color Gray
Replacement

Drawings i9338

Product Series 734/735
Part Number 915900047
Category 3/4 DIN Platform
Plate Type Bracket
Dimensions
Installs Into Surface Mount/Panel
Purpose Retrofit
Description Fixed Wall-Mount Bracket
Color Gray
Replacement
7xx vertical or horizontal single panel - fixed bracket

Drawings i9091

Product Series 734/735
Part Number 915900255
Category 3/4 DIN Platform
Plate Type Bracket
Dimensions
Installs Into Wall Mount
Purpose Bracket
Description Low Profile, Hinged, Contains 2 Ribbon Cables
Color Gray
Replacement

Drawings i9294

Product Series 734/735
Part Number 915900317
Category 3/4 DIN Platform
Plate Type Bracket
Dimensions
Installs Into Wall Mount
Purpose Bracket
Description Low-Profile, Hinged, Contains CT/PT Wiring and 1 Serial Cable
Color Gray
Replacement

Drawings i9294

Product Series 734/735
Part Number 915900070
Category 3/4 DIN Platform
Plate Type Bezel
Dimensions
Bezel Dimensions:


L: 177.8 mm (7.0 in)


W: 228.6 mm (9.0 in)


D: 2.54 mm (0.1 in)





Stud Location Dimensions:


L: 165.1 mm (6.5 in)


W: 215.9 mm (8.5 in)
Installs Into Panel/Enclosure
Purpose Retrofit
Description Single Vertical Meter
Color Gray
Replacement
JEM 1/10 Panel Mount

Drawings i9119

Product Series 734/735
Part Number 915900009
Category 3/4 DIN Platform
Plate Type Bracket
Dimensions
Installs Into 19 in. Rack - 4U/Panel
Purpose Retrofit
Description Horizontal 7xx/24xx + FT-1 Test Switch Bracket
Color Gray
Replacement

Drawings i9070

Product Series 734/735
Part Number 915900318
Category 3/4 DIN Platform
Plate Type Bracket
Dimensions
Installs Into Wall Mount
Purpose Bracket
Description Low-Profile, Hinged, Contains CT/PT Wiring and 2 Serial Cables
Color Gray
Replacement

Drawings i9294

Product Series 734/735
Part Number 915900170
Category 3/4 DIN Platform
Plate Type Dust & Splash Protection Kit
Dimensions
Installs Into Panel
Purpose Protection
Description 7xx Dust-Protection Assembly. Protects rear panel from dust ingress.
Color Black
Replacement

Drawings i9205

Product Series 734/735
Part Number 915900319
Category 3/4 DIN Platform
Plate Type Bracket
Dimensions
Installs Into Wall Mount
Purpose Bracket
Description Low-Profile, Hinged, Contains CT/PT Wiring and 3 Serial Cables
Color Gray
Replacement

Drawings i9294

Product Series 734/735
Part Number 915900052
Category 3/4 DIN Platform
Plate Type Bracket
Dimensions
Installs Into 19 in. Rack - 5U/Panel
Purpose Adaptor
Description Vertical 7xx/24xx + FT-1 Test Switch Bracket
Color Gray
Replacement
7xx vertical with FT-1

Drawings i9142

Product Series 734/735
Part Number 915900179
Category 3/4 DIN Platform
Plate Type Bracket
Dimensions
3U
Installs Into 19 in. Rack - 3U
Purpose Adaptor
Description Two FT-1 Cutouts
Color Gray
Replacement

Drawings i9216

Product Series 734/735
Part Number 915900057
Category 3/4 DIN Platform
Plate Type Bezel
Dimensions
Bezel Dimensions:


L: 171.45 mm (6.75 in)


W: 260.35 mm (10.25 in)


D: 12.7 mm (0.5 in)





Stud Location Dimensions:


L: 136.65 mm (5.38 in)


W: 226.06 mm (8.9 in)
Installs Into Panel
Purpose Retrofit
Description Vertical Retrofit
Color Gray
Replacement
Cutler-Hammer MP-3000

Drawings i9098

Product Series 734/735
Part Number 915900084
Category 3/4 DIN Platform
Plate Type Blank Plate
Dimensions
Bezel Dimensions:


L: 161.93 mm (6.375 in)


W: 265.13 mm (10.438 in)


D: 12.7 mm (0.5 in)





Stud Location Dimensions:


L: 141.3 mm (5.563 in)


W: 246.08 mm (9.688 in)
Installs Into Panel
Purpose Retrofit
Description Blank Cover Plate
Color Gray
Replacement
ABB-FT 21/22 (CO FT-2)

Drawings i9112

Product Series 734/735
Part Number 915900072
Category 3/4 DIN Platform
Plate Type Bezel
Dimensions
Bezel Dimensions:


L: 172.72 mm (6.8 in)


W: 231.9 mm (9.13 in)


D: 12.7 mm (0.5 in)





Stud Location Dimensions:


L: 153.92 mm (6.06 in)


W: 209.8 mm (8.26 in)
Installs Into Panel/Enclosure
Purpose Retrofit
Description Single Vertical Meter
Color Gray
Replacement
JEMStar SB/TransData MK-5 SB

Drawings i9121

Product Series 734/735
Part Number 915900066
Category 3/4 DIN Platform
Plate Type NEMA Outdoor Enclosure
Dimensions
Installs Into Enclosure
Purpose Retrofit
Description 7xx/24xx Vertical with FT-1 Switch Cutout, Swing Door, and Outdoor Enclosure
Color Gray
Replacement

Drawings i9117

Product Series 734/735
Part Number 915900046
Category 3/4 DIN Platform
Plate Type Bracket
Dimensions
Installs Into Surface Mount
Purpose Retrofit
Description Indoor Enclosure Mounting Bracket for SEL-700 Series (FT-1 Test Switch Cutout, Horizontal)
Color Gray
Replacement
7xx horizontal with FT-1, bracket, and swing door assembly Panel Extension

Drawings i9090

Product Series 734/735
Part Number 915900053
Category 3/4 DIN Platform
Plate Type Bezel
Dimensions
Bezel Dimensions:


L: 177.8 mm (7.0 in)


W: 228.6 mm (9.0 in)


D: 1.52 mm (0.06 in)





Stud Location Dimensions:


None
Installs Into Panel
Purpose Retrofit
Description Single Vertical Meter
Color Gray
Replacement
701 to 7xx vertical appearance, qty 2

Drawings i9095

Product Series 734/735
Part Number 915900297
Category 3/4 DIN Platform
Plate Type Bracket
Dimensions
Installs Into Enclosure
Purpose Pole Mounting
Description Mounting Brackets for 16" x 18" x 8" Enclosure
Color Gray
Replacement

Drawings i9320

Product Series 734/735
Part Number 915900058
Category 3/4 DIN Platform
Plate Type Bezel
Dimensions
Bezel Dimensions:


L: 177.8 mm (7.0 in)


W: 228.6 mm (9.0 in)


D: 1.52 mm (0.06 in)





Stud Location Dimensions:


None
Installs Into Panel/Enclosure
Purpose Appearance
Description Vertical Appearance Bezel
Color Gray
Replacement

Drawings i9099

Product Series 734/735
Part Number 915900085
Category 3/4 DIN Platform
Plate Type Blank Plate
Dimensions
Bezel Dimensions:


L: 168.28 mm (6.625 in)


W: 231.78 mm (9.125 in)


D: 12.7 mm (0.5 in)





Stud Location Dimensions:


None
Installs Into Panel
Purpose Retrofit
Description Blank Cover Plate
Color Gray
Replacement
GE S1 (IAC S1)

Drawings i9113

Product Series 734/735
Part Number 915900065
Category 3/4 DIN Platform
Plate Type Indoor Enclosure/Bracket
Dimensions
Installs Into Surface Mount
Purpose Retrofit
Description 7xx Indoor Enclosure + FT-1 Test Switch Cutout, Vertical
Color Gray
Replacement

Drawings i9116

Product Series 734/735
Part Number 915900035
Category 3/4 DIN Platform
Plate Type Bracket
Dimensions
Installs Into 19 in. Rack - 4U/Panel
Purpose Adaptor
Description Horizontal 7xx/24xx + Two FT-1 Test Switch Openings
Color Gray
Replacement

Drawings i9082

Product Series 734/735
Part Number 915900243
Category 3/4 DIN Platform
Plate Type Bracket
Dimensions
Installs Into 19 in. Rack - 5U
Purpose Bracket

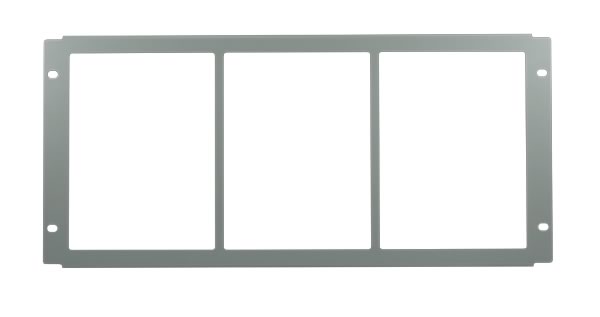

Description Three Vertical 7xx/24xx Bracket
Color Gray
Replacement

Drawings i9281

Product Series 734/735
Part Number 915900062
Category 3/4 DIN Platform
Plate Type Bracket
Dimensions
Installs Into NEMA Outdoor Enclosure
Purpose Retrofit
Description 7xx horizontal with FT-1, bracket, swing door, and enclosure
Color Gray
Replacement

Drawings i9101

Product Series 734/735
Part Number 915900073
Category 3/4 DIN Platform
Plate Type Bezel
Dimensions
Bezel Dimensions:


L: 167.13 mm (6.58 in)


W: 234.95 mm (9.25 in)


D: 12.7 mm (0.5 in)





Stud Location Dimensions:


L: 142.24 mm (5.6 in)


W: 215.9 mm (8.5 in)
Installs Into Panel/Enclosure
Purpose Retrofit
Description Single Vertical Meter
Color Gray
Replacement
Nexus 12XX, SB

Drawings i9122

Product Series 734/735
Part Number 915900178
Category 3/4 DIN Platform
Plate Type Bracket
Dimensions
3U
Installs Into 19 in. Rack - 3U
Purpose Adaptor
Description FT-1 Cutout
Color Gray
Replacement

Drawings i9215

Product Series 734/735
Part Number 915900099
Category 3/4 DIN Platform
Plate Type Bezel
Dimensions
Bezel Dimensions:


L: 228.6 mm (9.0 in)


W: 393.7 mm (15.5 in)


D: 12.7 mm (0.5 in)





Stud Location Dimensions:


L: 206.38 mm (8.125 in)


W: 304.8 mm (12.0 in)
Installs Into Panel
Purpose Retrofit
Description 7xx/24xx Vertical Retrofit
Color Gray
Replacement
GE/Multilin 269 Drawout
GE/Multilin 269 Plus Drawout

Drawings i9190

Product Series 734/735
Part Number 915900054
Category 3/4 DIN Platform
Plate Type Bezel
Dimensions
Bezel Dimensions:


L: 205.74 mm (8.1 in)


W: 297.18 mm (11.7 in)


D: 12.7 mm (0.5 in)





Stud Location Dimensions:


L: 155.57 mm (6.125 in)


W: 276.22 mm (10.875 in)
Installs Into Panel
Purpose Retrofit
Description Vertical Retrofit
Color Gray
Replacement
GE/Multilin 169
GE/Multilin 269
GE/Multilin 269 Plus
GE/Multilin 369
Eaton FP5000

Drawings i9096

Product Series 734/735
Part Number 915900130
Category 3/4 DIN Platform
Plate Type Bezel
Dimensions
Bezel Dimensions:


L: 168.28 mm (6.625 in)


W: 261.92 mm (10.312 in)


D: 12.7 mm (0.5 in)





Stud Location Dimensions:


L: 155.5 mm (6.122 in)


W: 141.27 mm (5.562 in)
Installs Into Panel
Purpose Retrofit
Description 7xx/24xx Vertical Retrofit with 2 FT-1 Switch Cutouts
Color Gray
Replacement
ABB-FT 31/32 (CO FT-3)

Drawings i9153

Product Series 734/735
Part Number 915900078
Category 3/4 DIN Platform
Plate Type Bezel
Dimensions
Bezel Dimensions:


L: 161.93 mm (6.375 in)


W: 265.13 mm (10.438 in)


D: 12.7 mm (0.5 in)





Stud Location Dimensions:


L: 141.3 mm (5.563 in)


W: 246.07 mm (9.688 in)
Installs Into Panel
Purpose Retrofit
Description 7xx/24xx Vertical Retrofit
Color Gray
Replacement
ABB FT-21/22 (CO FT-2)

Drawings i9106

Product Series 734/735
Part Number 915900452
Category 3/4 DIN Platform
Plate Type Dust & Splash Protection Kit
Dimensions
Installs Into Panel
Purpose Protection
Description 7xx Dust-Protection Assembly with Transparent Rear Cover. Protects rear panel from dust ingress.
Color Black
Replacement

Drawings i9205

Product Series 734/735
Part Number 915900079
Category 3/4 DIN Platform
Plate Type Bezel
Dimensions
Bezel Dimensions:


L: 236.22 mm (9.3 in)


W: 266.7 mm (10.5 in)


D: 12.7 mm (0.5 in)





Stud Location Dimensions:


L: 210.06 mm (8.27 in)


W: 190.5 mm (7.5 in)
Installs Into Panel
Purpose Retrofit
Description 7xx/24xx Vertical Retrofit
Color Gray
Replacement
GE F650

Drawings i9107

Product Series 734/735
Part Number 915900132
Category 3/4 DIN Platform
Plate Type Bezel
Dimensions
Bezel Dimensions:


D: 12.7 mm (0.5 in)





Stud Location Dimensions:


None
Installs Into Panel
Purpose Retrofit
Description 7xx/24xx Vertical Retrofit
Color Gray
Replacement
GE MDP/S2

Drawings i9155

Product Series 734/735
Part Number 915900005
Category 3/4 DIN Platform
Plate Type Bezel
Dimensions
Bezel Dimensions:


L: 228.6 mm (9.0 in)


W: 304.8 mm (12.0 in)





Stud Location Dimensions:


L: 155.6 mm (6.13 in)


W: 276.2 mm (10.88 in)
Installs Into Panel
Purpose Retrofit
Description Meter and FT-1 Test Switch Horizontal Meter + FT-1 test switch SB
Color Gray
Replacement

Drawings i9063

Product Series 734/735
Part Number 915900068
Category 3/4 DIN Platform
Plate Type Bezel
Dimensions
Bezel Dimensions:


L: 173.05 mm (6.813 in)


W: 211.15 mm (8.313 in)


D: 12.7 mm (0.5 in)





Stud Location Dimensions:


L: 155.59 mm (6.125 in)


W: 111.13 mm (4.375 in)
Installs Into Panel/Enclosure
Purpose Retrofit
Description Single Vertical Meter
Color Gray
Replacement
GE kV

Drawings i9105

Product Series 734/735
Part Number 915900133
Category 3/4 DIN Platform
Plate Type Bezel
Dimensions
Bezel Dimensions:


L: 168.28 mm (6.625 in)


W: 384.18 mm (15.125 in)


D: 12.7 mm (0.5 in)





Stud Location Dimensions:


L: 155.5 mm (6.122 in)


W: 263.51 mm (10.374 in)
Installs Into Panel
Purpose Retrofit
Description 7xx/24xx Vertical Retrofit
Color Gray
Replacement
GE M1

Drawings i9156

Product Series 734/735
Part Number 915900134
Category 3/4 DIN Platform
Plate Type Bezel
Dimensions
Bezel Dimensions:


L: 168.28 mm (6.625 in)


W: 414.32 mm (16.312 in)


D: 12.7 mm (0.5 in)





Stud Location Dimensions:


L: 155.5 mm (6.122 in)


W: 293.66 mm (11.561 in)
Installs Into Panel
Purpose Retrofit
Description 7xx/24xx Vertical Retrofit
Color Gray
Replacement
GE M2

Drawings i9157

Product Series 734/735
Part Number 915900090
Category 3/4 DIN Platform
Plate Type Indoor Enclosure/Bracket
Dimensions
Installs Into Enclosure
Purpose Enclosure
Description Horizontal 7xx Indoor Enclosure, No FT-1 Test Switch, Horizontal
Color Gray
Replacement

Drawings i9129

Product Series 734/735
Part Number 915900074
Category 3/4 DIN Platform
Plate Type Bezel
Dimensions
Bezel Dimensions:


L: 162.56 mm (6.4 in)


W: 264.16 mm (10.4 in)


D: 12.7 mm (0.5 in)





Stud Location Dimensions:


L: 142.24 mm (5.6 in)


W: 246.38 mm (9.7 in)
Installs Into Panel/Enclosure
Purpose Retrofit
Description Single Vertical Meter
Color Gray
Replacement
PML ION 8000 Series SB

Drawings i9123

Product Series 734/735
Part Number 915900023
Category 3/4 DIN Platform
Plate Type Bezel
Dimensions
Bezel Dimensions:


L: 244.5 mm (9.63 in)


W: 421.6 mm (16.6 in)





Stud Location Dimensions:


L: 206.4 mm (8.13 in)


W: 304.8 mm (12.0 in)
Installs Into Panel
Purpose Retrofit
Description Horizontal Meter and FT-1 Test Switch
Color Gray
Replacement
GE/Multilin 269 Drawout
GE/Multilin 269 Plus Drawout
Basler MPS200

Drawings i9071

Product Series 734/735
Part Number 915900145
Category 3/4 DIN Platform
Plate Type Bezel
Dimensions
Bezel Dimensions:


L: 322.83 mm (12.71 in)


W: 196.6 mm (7.74 in)


D: 12.7 mm (0.5 in)





Stud Location Dimensions:


L: 292.1 mm (11.5 in)


W: 152.4 mm (6.0 in)
Installs Into Panel
Purpose Retrofit
Description 7xx/24xx Vertical Retrofit
Color Gray
Replacement
GE 565

Drawings i9174

Product Series 734/735
Part Number 915900075
Category 3/4 DIN Platform
Plate Type Bezel
Dimensions
Bezel Dimensions:


L: 168.91 mm (6.65 in)


W: 383.54 mm (15.1 in)


D: 12.7 mm (0.5 in)





Stud Location Dimensions:


L: 153.92 mm (6.06 in)


W: 361.95 mm (14.25 in)
Installs Into Panel/Enclosure
Purpose Retrofit
Description Single Vertical Meter
Color Gray
Replacement
Schlumberger Q1000 SB

Drawings i9124

Product Series 734/735
Part Number 915900055
Category 3/4 DIN Platform
Plate Type Bezel
Dimensions
Bezel Dimensions:
L: 215.9 mm (8.5 in)
W: 254.0 mm (10.0 in)
D: 12.7 mm (0.5 in)

Stud Location Dimensions:
L: 179.07 mm (7.05 in)
W: 223.52 mm (8.8 in)
Installs Into Panel
Purpose Retrofit
Description Vertical Retrofit
Color Gray
Replacement
GE/Multilin 469/489
GE/Multilin 735/737
GE SR750
GE SR760
GE SR745
GE SR469
GE SR845
GE SR850

Drawings i9097

Product Series 734/735
Part Number 915900156
Category 3/4 DIN Platform
Plate Type Bezel
Dimensions
Bezel Dimensions:


L: 171.44 mm (6.75 in)


W: 488.95 mm (19.25 in)


D: 12.7 mm (0.5 in)





Stud Location Dimensions:


L: 141.28 mm (5.562 in)


W: 469.9 mm (18.5 in)
Installs Into Panel
Purpose Retrofit
Description 7xx/24xx Vertical Retrofit with 2 FT-1 Switch Cutouts
Color Gray
Replacement
ABB-FT 41/42 (CO FT-4)

Drawings i9191

Product Series 734/735
Part Number 915900091
Category 3/4 DIN Platform
Plate Type Indoor Enclosure/Bracket
Dimensions
Installs Into Enclosure
Purpose Bracket
Description Vertical 7xx Indoor Enclosure, No FT-1 Test Switch, Vertical
Color Gray
Replacement

Drawings i9130

Product Series 734/735
Part Number 915900076
Category 3/4 DIN Platform
Plate Type Bezel
Dimensions
Bezel Dimensions:


L: 171.45 mm (6.75 in)


W: 419.1 mm (16.5 in)


D: 12.7 mm (0.5 in)





Stud Location Dimensions:


L: 141.29 mm (5.563 in)


W: 400.05 mm (15.75 in)
Installs Into Panel/Enclosure
Purpose Retrofit
Description Single Vertical Meter
Color Gray
Replacement
Siemens Q4 Tall SB

Drawings i9125

Product Series 734/735
Part Number 915900140
Category 3/4 DIN Platform
Plate Type Bezel
Dimensions
Bezel Dimensions:


L: 171.44 mm (6.75 in)


W: 419.1 mm (16.5 in)


D: 12.7 mm (0.5 in)





Stud Location Dimensions:


L: 141.28 mm (5.562 in)


W: 400.04 mm (15.75 in)
Installs Into Panel
Purpose Retrofit
Description Relay and FT-1 Test Switch
Color Gray
Replacement
ABB-FT 31/32
Siemens Q4 Tall

Drawings i9167

Product Series 734/735
Part Number 915900006
Category 3/4 DIN Platform
Plate Type Bezel
Dimensions
Bezel Dimensions:


L: 228.6 mm (9.0 in)


W: 304.8 mm (12.0 in)





Stud Location Dimensions:


L: 155.6 mm (6.13 in)


W: 276.2 mm (10.88 in)
Installs Into Panel
Purpose Retrofit
Description Single Horizontal Meter
Color Gray
Replacement

Drawings i9062

Product Series 734/735
Part Number 915900157
Category 3/4 DIN Platform
Plate Type Bezel
Dimensions
Bezel Dimensions:


L: 196.85 mm (7.75 in)


W: 387.35 mm (15.25 in)


D: 12.7 mm (0.5 in)





Stud Location Dimensions:


L: 120.65 mm (4.75 in)


W: 361.97 mm (14.251 in)
Installs Into Panel
Purpose Retrofit
Description 7xx/24xx Vertical Retrofit
Color Gray
Replacement
ABB DPU

Drawings i9192
